Buy cheap SIEMENS 6ES7145-1GB31-0XB0 SIMATIC DP, EXPANSION MODULE EM 145 F. ET200X, IP66/67 2 AO, +/-20V,0(4)-20MA,12BIT+VZ WITH DIAGNOSTICS VIA CHANNELS 2-WIRE from wholesalers

-20V,0(4)-20MA,12BIT+VZ WITH DIAGNOSTICS VIA CHANNELS 2-WIRE

Ask Lasest Price
Brand Name :	SIEMENS
Model Number :	6ES7145-1GB31-0XB0
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	100PS
Delivery Time :	10-12Days

Add to Cart

Product Details
Company Profile

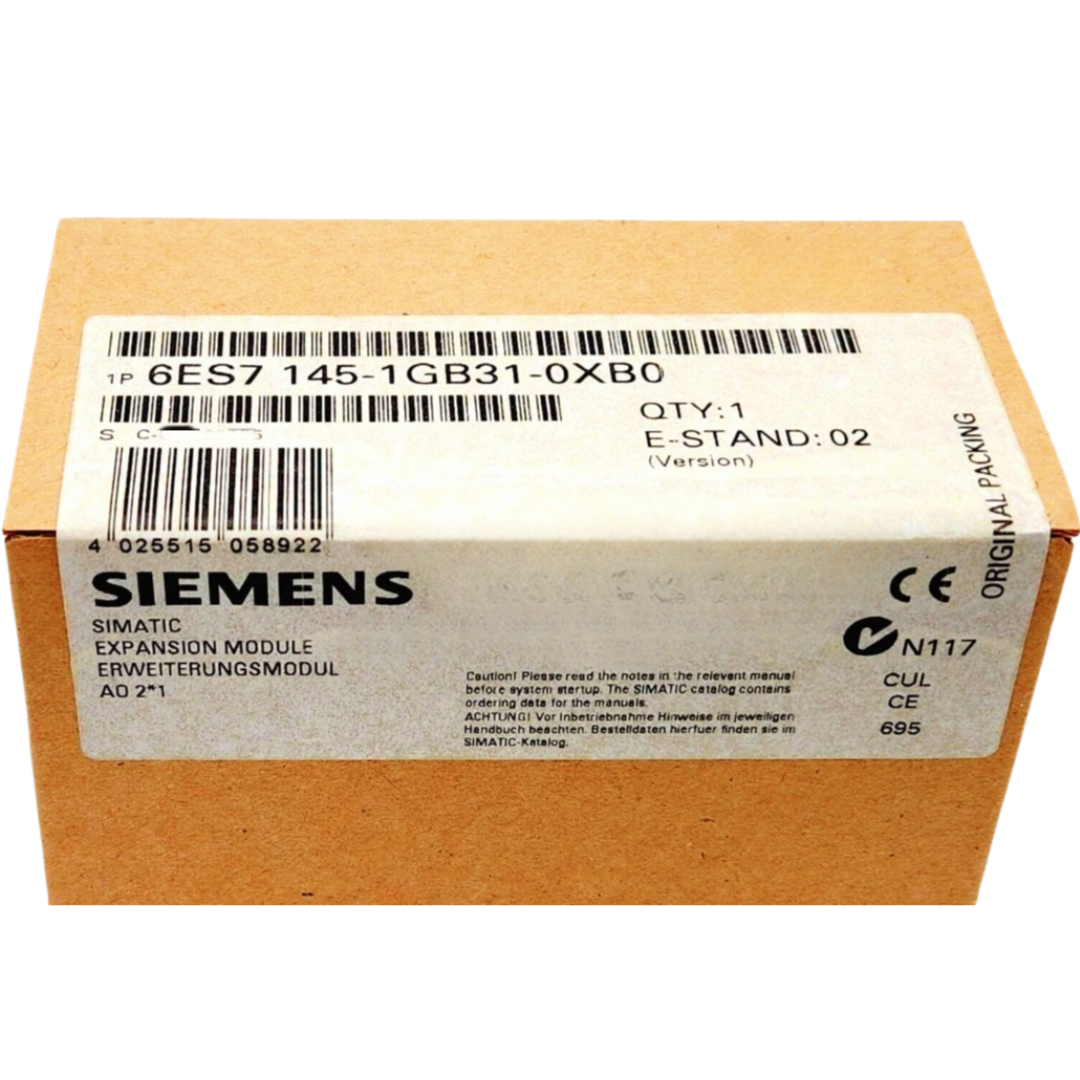

SIEMENS 6ES7145-1GB31-0XB0 SIMATIC DP, EXPANSION MODULE EM 145 F. ET200X, IP66/67 2 AO, +/-20V,0(4)-20MA,12BIT+VZ WITH DIAGNOSTICS VIA CHANNELS 2-WIRE

SIEMENS 6ES7145-1GB31-0XB0 SIMATIC DP, EXPANSION MODULE EM 145 F. ET200X, IP66/67 2 AO, +/-20V,0(4)-20MA,12BIT+VZ WITH DIAGNOSTICS VIA CHANNELS 2-WIRE CONNECTION 2X 5-POLE M12

The **Siemens 6ES7145-1GB31-0XB0** is an **Expansion Module** designed for the **SIMATIC DP** series, specifically created for use with the **ET 200X** system. This module offers **2 Analog Outputs (AO)** capable of delivering signals within the range of **±20V** or **0-20mA**. With a **12-bit resolution** and zero point adjustment, it includes diagnostic functionalities accessible via the channels.

Key features of the 6ES7145-1GB31-0XB0 module for the ET 200X system:
- **Product Code:** 6ES7145-1GB31-0XB0
- **Product Line:** SIMATIC DP
- **Compatible System:** ET 200X
- **Module Type:** Expansion Module
- **Analog Outputs:** 2 AO
- **Output Range:** ±20V, 0-20mA
- **Resolution:** 12-bit + zero adjustment
- **Diagnostics:** Available via channels
- **Connection:** 2-wire connection
- **Connectors:** 2x 5-pole M12 connectors
- **Degree of Protection:** IP66/67

This module is designed to provide precise analog output capabilities for the ET 200X system, supporting both voltage (±20V) and current (0-20mA) output signals with a 12-bit resolution and zero adjustment feature. The diagnostic functionalities accessible via the channels enable detailed monitoring and troubleshooting of the output signals. With a 2-wire connection setup and 5-pole M12 connectors, this module offers a robust and reliable means of integration within the system. Additionally, the IP66/67 degree of protection ensures its suitability for use in environments where protection against dust and water ingress is essential.

Product
Article Number	6ES7145-1GB31-0XB0
Product Description	*Spare part* SIMATIC DP, Expansion module EM 145 f. ET200X, IP66/67 2 AO, +/-20V,0(4)-20mA,12Bit+VZ with diagnostics via channels 2-wire connection 2x 5-pole M12
Product family	Not available
Product Lifecycle (PLM)	PM500:Discontinued Product or end of PLM & Support
PLM Effective Date	End of product lifecycle since: 01.10.2019
Notes	Product was deleted without replacement. If you need assistance please contact our local Siemens office
Price data
Price Group	2AP
List Price	Show prices
Customer Price	Show prices
Surcharge for Raw Material	see also metal factor (further details are available on the help page)
Metal Factor	see also metal factor (further details are available on the help page)
Delivery information
Export Control Regulations	ECCN : N / AL : N
Estimated dispatch time (Working Days)	30 Day(s)
Net Weight (kg)	0,295 Kg
Packaging Dimension	9,90 x 11,10 x 6,20
Package size unit of measure	CM
Quantity Unit	0 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515058922
UPC	662643220988
Commodity Code	85389091
LKZ_FDB/ CatalogID	ST9-E5
Product Group	4468
Group Code	R111
Country of origin	Germany
