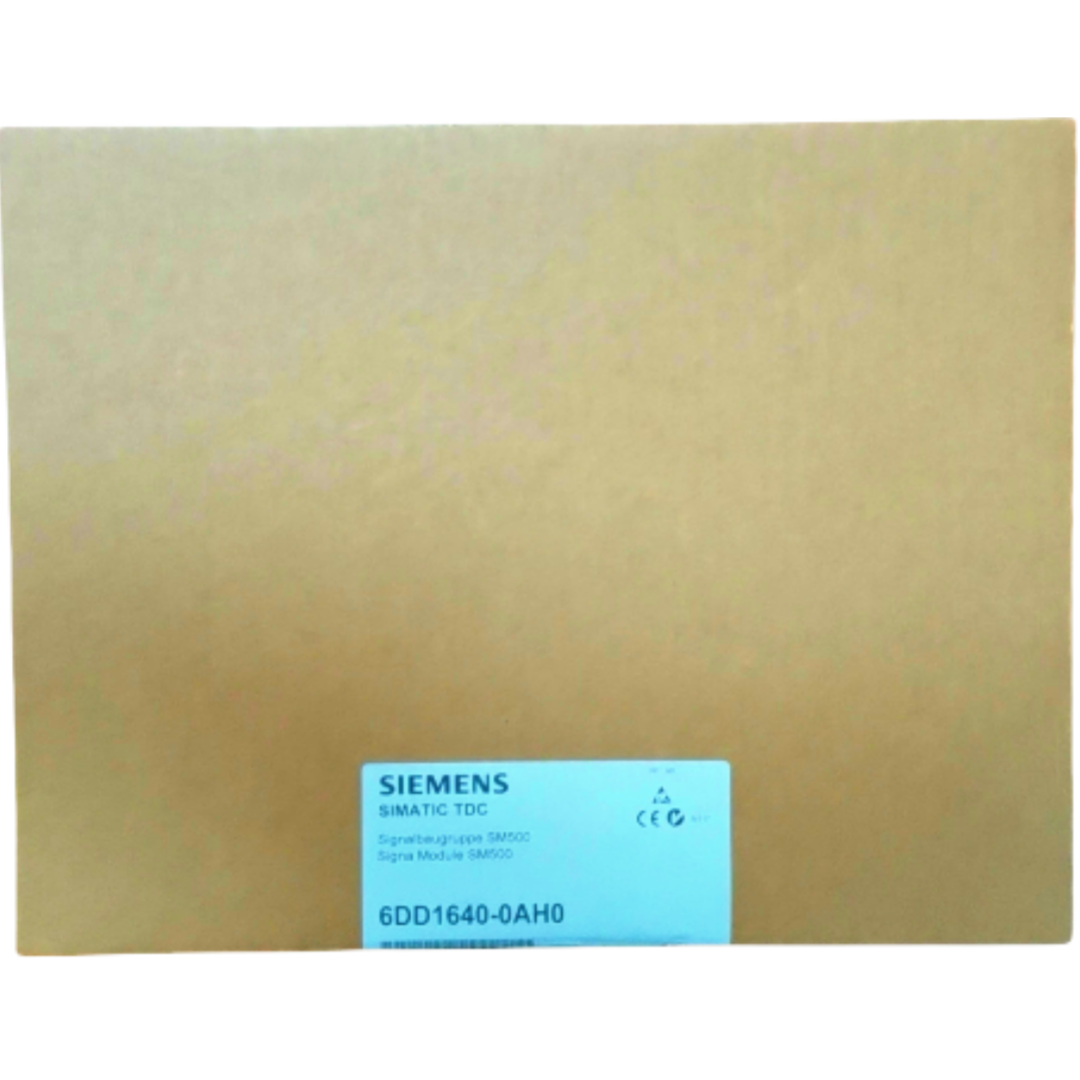

SIEMENS 6DD1640-0AH0 SIMATIC TDC SM500, 8AO/8AI/16DO/16DI 4
INCREMENTAL ENCODER INPUTS/ 4 ABSOLUTE VALUE ENCODER INPUTS
here are the details on the Siemens 6DD1640-0AH0 SIMATIC TDC SM500
I/O module:
Product Details:
- Model Number: 6DD1640-0AH0
- Product Name: SIMATIC TDC SM500
Description:
The SIMATIC TDC SM500 is a versatile I/O module designed for the
SIMATIC TDC (Technology and Drive Controller) system. It provides a
wide range of digital and analog I/O capabilities, as well as
support for incremental and absolute value encoders.
Key Features:
- SIMATIC TDC SM500 I/O Module
- 8 analog outputs
- 8 analog inputs
- 16 digital outputs
- 16 digital inputs
- 4 incremental encoder inputs
- 4 absolute value encoder inputs
- 16-bit data resolution
- Supports distributed control architecture
- Robust, industrial-grade design
Detailed Specifications:
- Analog Outputs: 8
- Analog Inputs: 8
- Digital Outputs: 16
- Digital Inputs: 16
- Incremental Encoder Inputs: 4
- Absolute Value Encoder Inputs: 4
- Data Resolution: 16-bit
- Power Supply: 24 VDC
- Dimensions (W x H x D): 50 x 150 x 120 mm
- Operating Temperature: 0°C to 55°C
The SIMATIC TDC SM500 I/O module provides a comprehensive set of
I/O capabilities, including analog inputs and outputs, digital
inputs and outputs, as well as support for both incremental and
absolute value encoders.
The 16-bit data resolution ensures high-quality signal processing
and control. The encoder inputs allow for precise position and
speed monitoring, which is essential for many industrial automation
and motion control applications.
The robust, industrial-grade design of the SM500 module makes it
suitable for deployment in demanding environments, ensuring
reliable performance and long-term operation.
As a part of the SIMATIC TDC system, the SM500 I/O module
seamlessly integrates with the overall control architecture,
enabling distributed control and data exchange across the
automation system.
Please let me know if you need any additional information on the
SIMATIC TDC SM500 I/O module.
| Product |
| Article Number | 6DD1640-0AH0 |
| Product Description | SIMATIC TDC Signal module SM500 with 8 AO/8 AI/16 DO/16 DI/ 4
incremental encoder inputs/ 4 absolute value encoder inputs/ 6 LEDs |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.10.2022 |
| Notes | This product is a spare part product. More information you'll get
via "Alternative Buying Options". If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S20 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help
page) |
| Metal Factor | see also metal factor (further details are available on the help
page) |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,558 Kg |
| Packaging Dimension | 23,30 x 30,30 x 4,20 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4019169134774 |
| UPC | Not available |
| Commodity Code | 85389091 |
| LKZ_FDB/ CatalogID | ST.DA99 |
| Product Group | 4476 |
| Group Code | R132 |
| Country of origin | Germany |
