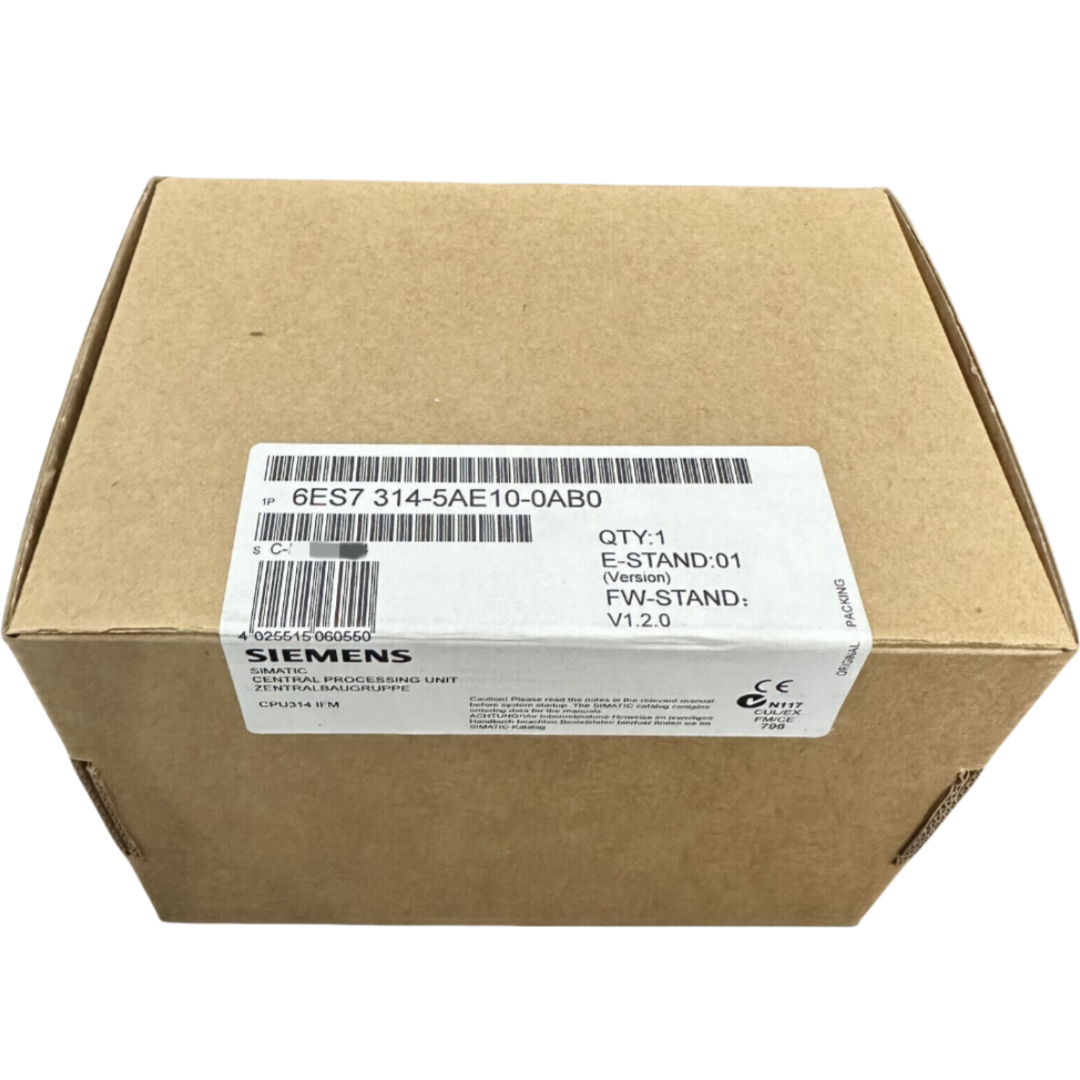

SIEMENS 6ES7314-5AE10-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH SLOT F. MC 16DI/16DO, 4AI/1AO, 2 X 40 PIN

The Siemens 6ES7314-5AE10-0AB0 is a SIMATIC S7-300 CPU 314 IFM Compact CPU module designed with a slot for an MC (Memory Card) and features a combination of digital and analog inputs and outputs.

**Product Description:**
- **Model:** 6ES7314-5AE10-0AB0
- **Product:** SIMATIC S7-300 CPU 314 IFM Compact CPU with Slot for Memory Card
- **Digital Inputs/Outputs:** 16 DI (Digital Inputs) / 16 DO (Digital Outputs)
- **Analog Inputs/Outputs:** 4 AI (Analog Inputs) / 1 AO (Analog Output)
- **Connector Type:** 2 x 40-pin

**Key Features:**
1. **Compact Design:** The IFM (Integrated Functions Module) design provides a compact solution for automation tasks.
2. **Memory Card Slot:** Allows for the use of a memory card to expand storage capacity or for data handling.
3. **Digital Inputs/Outputs:** Offers 16 digital inputs and 16 digital outputs for handling binary signals.
4. **Analog Inputs/Outputs:** Includes 4 analog inputs and 1 analog output for processing continuous signals.
5. **Connector Type:** Equipped with 2 x 40-pin connectors for interfacing with external devices or expansion modules.

**Applications:**
1. **Industrial Automation:** Suitable for controlling and monitoring processes in industrial automation environments.
2. **PLC Programming:** Enables the creation of control logic for automated systems.
3. **Memory Expansion:** Utilize the memory card slot for expanding storage capacity or data handling capabilities.

For detailed installation instructions, configuration settings, and programming guidelines for the 6ES7314-5AE10-0AB0 CPU module, refer to the product documentation provided by Siemens. Siemens' technical support can also assist with integrating and utilizing this CPU module within your specific automation setup.
