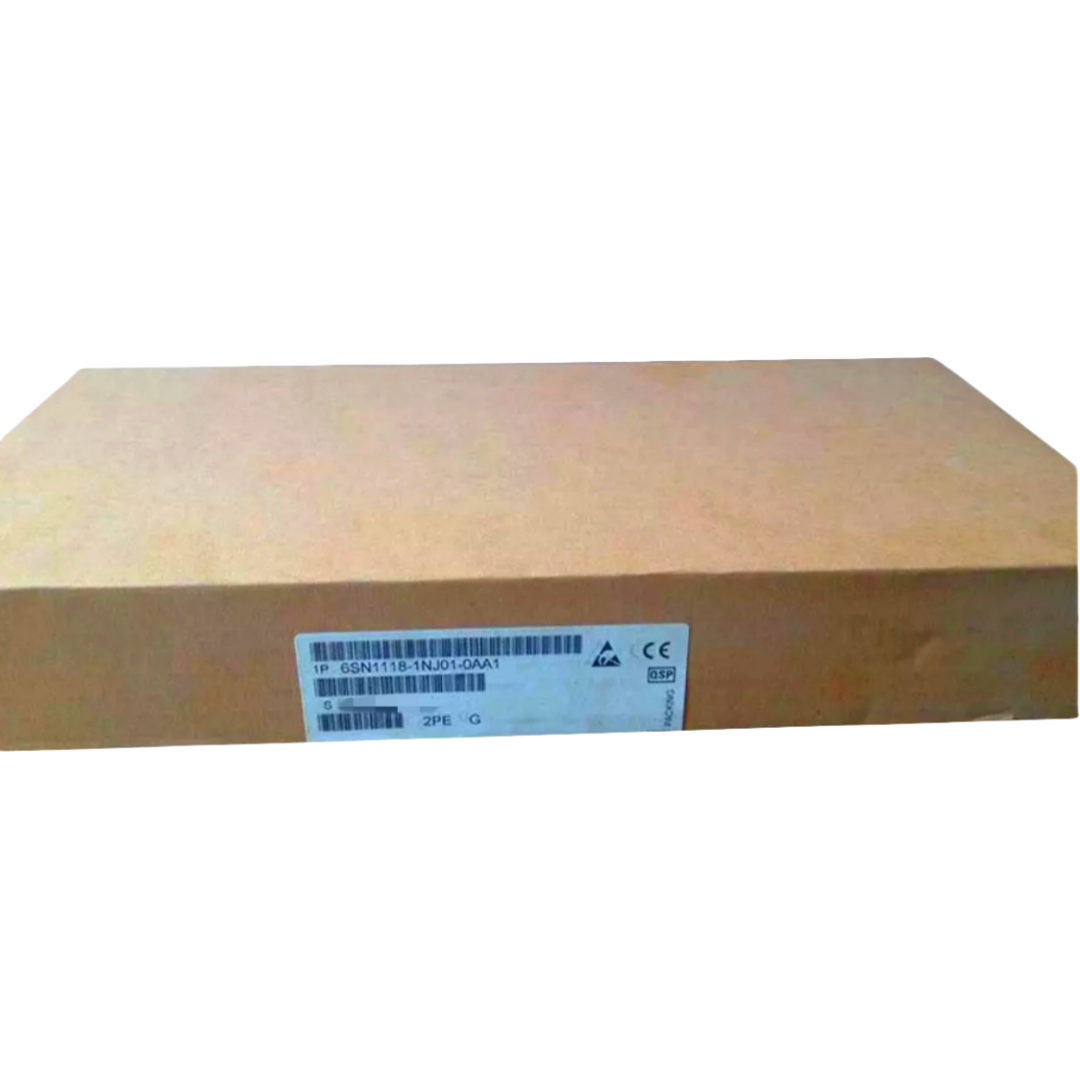

SIEMENS 6SN1118-1NJ01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT
1-AX SET/POS
Here are the key details for the Siemens 6SN1118-1NJ01-0AA1
SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT 1-AX SET/POS:
1. Product Overview:
- This is a 1-axis universal control unit from the Siemens
SIMODRIVE 611 digital drive system.
- It is part of the UNIVERSAL series, designed for precise control
of various motor types.
- The unit supports high-resolution sensor (HRS) position feedback
and can be used for setpoint/positioning control.
2. Key Features:
- 1-axis control functionality
- High-resolution sensor (HRS) position feedback
- Setpoint/positioning control mode
- Integrated power supply and control electronics
3. Technical Specifications:
- Control Axes: 1
- Position Feedback: High-resolution sensor (HRS)
- Control Modes: Setpoint/positioning control
- Power Supply: 3-phase AC
- Control Electronics: Integrated
4. Functionality and Applications:
- The Siemens 6SN1118-1NJ01-0AA1 SIMODRIVE 611 UNIVERSAL HRS
CONTROL UNIT 1-AX SET/POS is designed for precise control of
various motor types in industrial automation and machinery
applications.
- The high-resolution sensor (HRS) position feedback and
setpoint/positioning control mode make it suitable for applications
that require accurate motion control, such as CNC machines,
industrial robots, packaging machinery, and other industrial
automation processes.
5. Integration and Configuration:
- The control unit is designed to be integrated within the
SIMODRIVE 611 digital drive system from Siemens.
- It can be configured and programmed using the Siemens engineering
software, such as SIMODRIVE Startdrive or SINUMERIK CNC programming
tools.
- The integration with the SIMODRIVE 611 system allows for seamless
communication and control of the motor drives.
6. Advantages:
- 1-axis control functionality for precise motion control
- High-resolution sensor (HRS) position feedback for reliable and
accurate positioning
- Setpoint/positioning control mode for versatile motion control
- Integrated power supply and control electronics for a compact
design
- Seamless integration with the SIMODRIVE 611 digital drive system
7. Certifications and Approvals:
- The Siemens 6SN1118-1NJ01-0AA1 SIMODRIVE 611 UNIVERSAL HRS
CONTROL UNIT 1-AX SET/POS is designed to meet relevant industrial
standards and regulations, such as CE marking, but the exact
certifications may vary based on the specific application and
region of use.
Please let me know if you need any additional information or have
further questions about this Siemens control unit.
| Product |
| Article Number | 6SN1118-1NJ01-0AA1 |
| Product Description | ***SPARE PART*** SIMODRIVE 611 U HR 1-AXIS CONTROL-LOOP BLOCK
RESOLVER SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 03.11.2014 |
| Notes | This product is a spare part product. More information you'll get
via "Alternative Buying Options". If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S60 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help
page) |
| Metal Factor | see also metal factor (further details are available on the help
page) |
| Delivery information |
| Export Control Regulations | ECCN : 9N9999 / AL : 3A225 |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,790 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4019169392068 |
| UPC | 662643069297 |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
