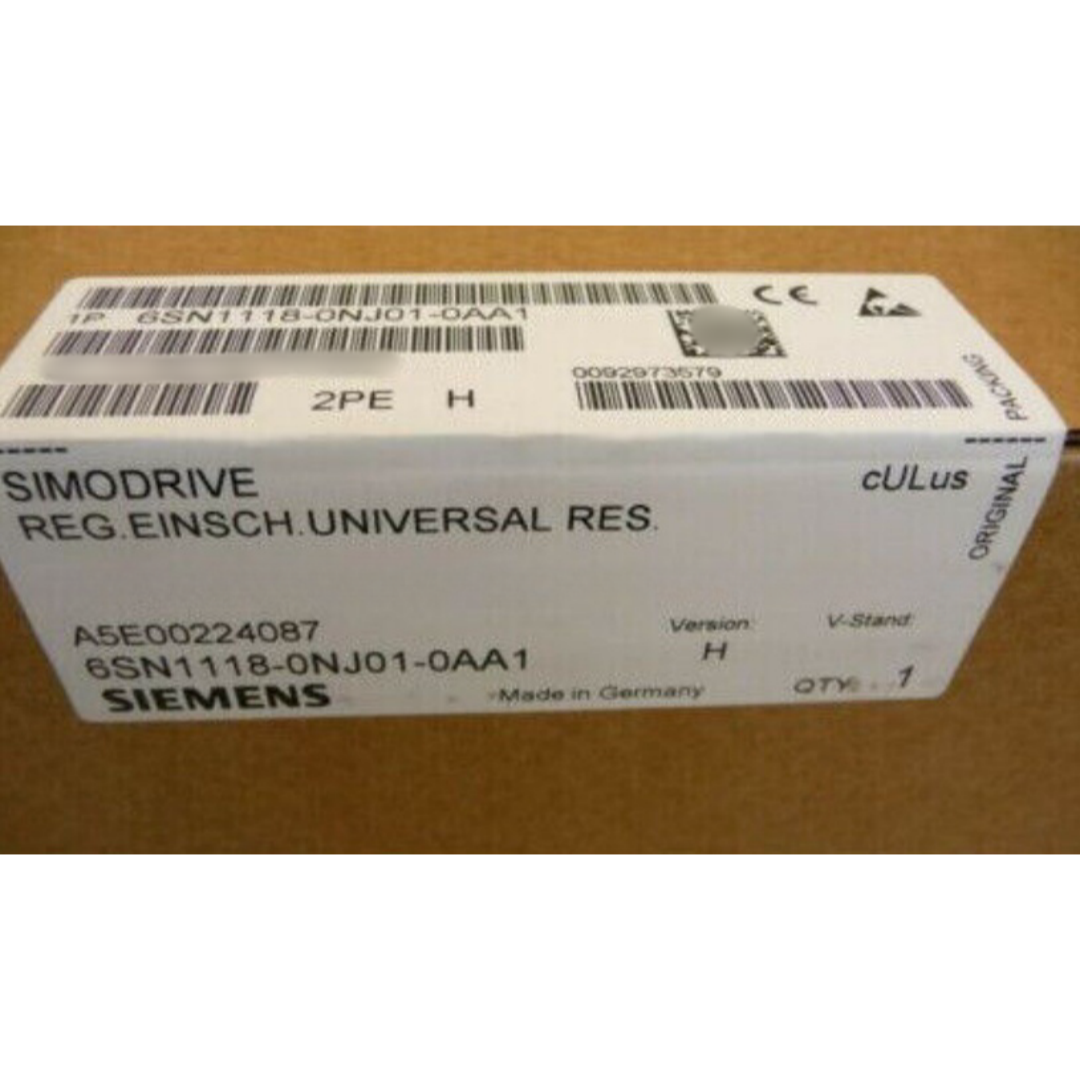

SIEMENS 6SN1118-0NJ01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL
UNIT, 1-AX, N-SET
Okay, let me provide more details on the Siemens 6SN1118-0NJ01-0AA1
SIMODRIVE 611 UNIVERSAL HRS Control Unit, 1-Ax, N-Set:
1. Product Overview:
- This is a 1-axis control unit from the Siemens SIMODRIVE 611
digital drive system.
- It is part of the UNIVERSAL HRS (Highly Resolver-based Speed)
series, which is designed for precision speed control using a
resolver feedback system.
2. Key Features:
- 1-axis control functionality
- Resolver-based speed control (N-Set mode)
- Integrated power supply and control electronics
- Compact and modular design for easy integration
3. Technical Specifications:
- Control Axes: 1
- Feedback System: Resolver
- Control Mode: Speed Setpoint (N-Set)
- Power Supply: 1-phase AC
- Control Electronics: Integrated
4. Functionality and Applications:
- The SIMODRIVE 611 UNIVERSAL HRS Control Unit, 1-Ax, N-Set is
designed for precise speed control of motors in industrial
automation and machinery applications.
- It utilizes a resolver feedback system to accurately monitor and
control the motor speed.
- The N-Set (speed setpoint) control mode allows for precise speed
regulation and control.
- This control unit is commonly used in applications such as CNC
machines, conveyor systems, packaging machinery, and other
industrial automation processes that require accurate motor speed
control.
5. Integration and Configuration:
- The control unit is designed to be integrated within the
SIMODRIVE 611 digital drive system from Siemens.
- It can be configured and programmed using the Siemens engineering
software, such as SIMODRIVE Startdrive or SINUMERIK CNC programming
tools.
- This allows for seamless integration with other Siemens
industrial automation components and systems, such as SINUMERIK CNC
controllers.
6. Advantages:
- Precise speed control using resolver feedback for improved
performance and reliability
- Compact and modular design for easy installation and integration
- Compatibility with the SIMODRIVE 611 digital drive system and
Siemens automation solutions
- Customizable and configurable to meet specific application
requirements
7. Certifications and Approvals:
- The Siemens 6SN1118-0NJ01-0AA1 SIMODRIVE 611 UNIVERSAL HRS
Control Unit, 1-Ax, N-Set is designed to meet relevant industrial
standards and regulations, such as CE marking, but the exact
certifications may vary based on the specific application and
region of use.
Please let me know if you need any additional information or have
further questions about this Siemens control unit.
| Product |
| Article Number | 6SN1118-0NJ01-0AA1 |
| Product Description | ***SPARE PART*** SIMODRIVE 611 U HR 1-AXIS CONTROL LOOP BLOCK
RESOLVER SPEED/TORQUE SETPOINT EXPANDABLE BY OPTIONS |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 03.11.2014 |
| Notes | Successor hint: Upgrade service! Successor type: 6SN1118-0NJ01-0AA2
with => FW 14.2 This product is a spare part product. More information you'll get
via "Alternative Buying Options". If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S60 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help
page) |
| Metal Factor | see also metal factor (further details are available on the help
page) |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : 3A225 |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,800 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | 662643069211 |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
