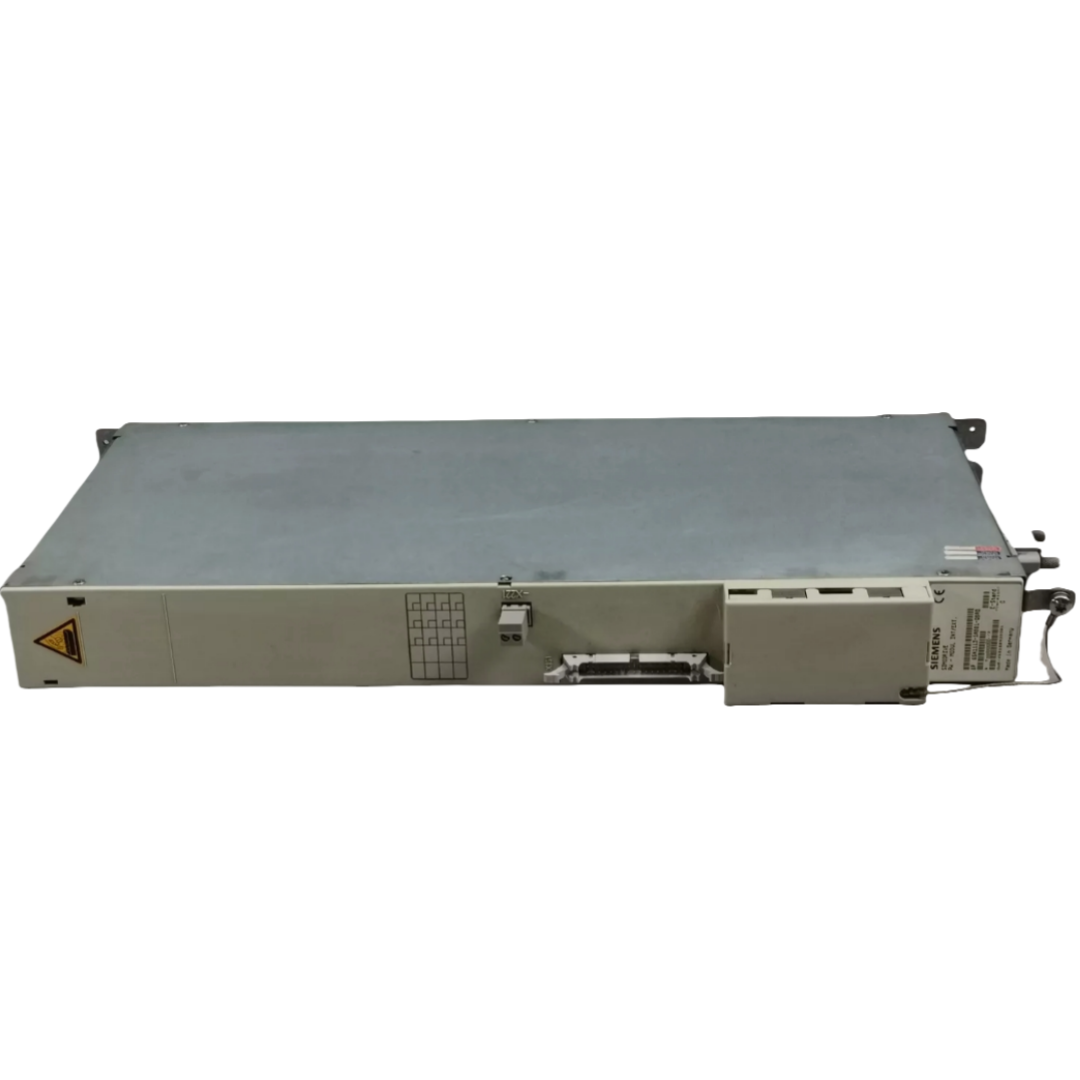

SIEMENS 6SN1113-1AB01-0BA0 SIMODRIVE 611 PULSED RESISTOR, 0.3/25KW
INTERNAL RESISTOR FOR 0.3/25 KW
The Siemens 6SN1113-1AB01-0BA0 is a pulsed resistor module designed
for use with the SIMODRIVE 611 drive system. It is a specific
internal resistor module that provides a 0.3/25 KW power rating.
Key details about the Siemens 6SN1113-1AB01-0BA0 pulsed resistor
module:
1. Overview:
- The 6SN1113-1AB01-0BA0 is a pulsed resistor module for the
SIMODRIVE 611 drive system.
- It is an internal resistor module with a power rating of 0.3/25
KW.
- The pulsed resistor module is used to dissipate energy during
braking operations in the SIMODRIVE 611 drive system.
2. Technical Specifications:
- Power rating: 0.3/25 KW
- Voltage range: 3 AC 380 V to 480 V
- Pulse power: 0.3 KW
- Continuous power: 25 KW
- Dimensions (W x H x D): 60 mm x 125 mm x 160 mm
- Mounting: Snap-on mounting on a DIN rail
3. Features and Benefits:
- Designed for use with the SIMODRIVE 611 drive system
- Provides a dedicated internal resistor module with a 0.3/25 KW
power rating
- Dissipates energy during braking operations, protecting the drive
system
- Compact and modular design for easy integration into the
SIMODRIVE 611 system
- Snap-on mounting on a DIN rail for convenient installation
4. Applications:
- The 6SN1113-1AB01-0BA0 pulsed resistor module is specifically
designed for use with the SIMODRIVE 611 drive system.
- It is primarily used to dissipate energy during braking
operations in applications that utilize the SIMODRIVE 611 drive,
such as:
- Industrial automation and machinery
- Material handling equipment
- Printing and packaging machines
- Hoists and cranes
- Any application that requires the SIMODRIVE 611 drive system with
braking capabilities
5. Integration and Configuration:
- The 6SN1113-1AB01-0BA0 pulsed resistor module is designed to be
easily integrated into the SIMODRIVE 611 drive system.
- It connects directly to the SIMODRIVE 611 drive, providing the
necessary braking resistor functionality.
- Configuration and programming of the pulsed resistor module is
typically done using the SIMODRIVE 611 engineering software, which
allows for parameter adjustments and diagnostics.
6. Certifications and Approvals:
- The Siemens 6SN1113-1AB01-0BA0 pulsed resistor module is designed
to meet relevant safety and quality standards for industrial
applications, such as CE marking.
- Additional certifications may be available based on specific
regional or application requirements.
Please let me know if you need any further details or have any
other questions about this pulsed resistor module from Siemens.
| Product |
| Article Number | 6SN1113-1AB01-0BA0 |
| Product Description | ***spare part*** SIMODRIVE 611 pulsed resistor module, internal
resistor for 0.3/25 kW universal housing for 211/288 mm depth |
| Product family | Not available |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| PLM Effective Date | Product discontinued since: 24.01.2002 |
| Notes | |
| Successor information |
| Successor |
6SN1113-1AB01-0BA1 |
| Successor Description | ***SPARE PART*** SIMODRIVE 611 PULSED RESISTOR MODULE, INTER.
RESISTANCE FOR 0.3/25 KW UNIVERSAL HOUSING FOR 211/288 MM DEPTH |
| Price data |
| Price Group | S60 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help
page) |
| Metal Factor | see also metal factor (further details are available on the help
page) |
| Delivery information |
| Export Control Regulations | ECCN : EAR99H / AL : N |
| Estimated dispatch time (Working Days) | On request |
| Net Weight (kg) | 4,000 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 85332900 |
| LKZ_FDB/ CatalogID | SD91.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
