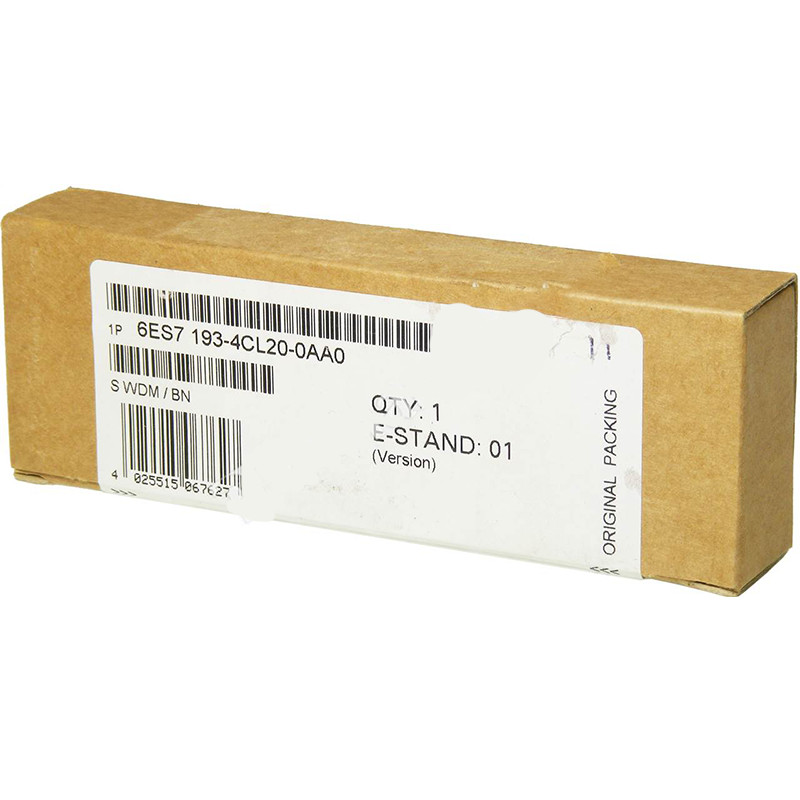

SIEMENS 6ES7193-4CL20-0AA0 SIMATIC ET200S TM-E15S24-AT TERMINAL
MODULE
Okay, let's review the details for the Siemens 6ES7193-4CL20-0AA0
SIMATIC ET200S TM-E15S24-AT Terminal Module:
Key Specifications:
1. Product Name:
- SIMATIC ET200S TM-E15S24-AT Terminal Module
2. Model Number:
- 6ES7193-4CL20-0AA0
3. Interface:
- This is a SIMATIC ET200S terminal module, providing a connection
interface for the ET200S distributed I/O system.
4. Functionality:
- The terminal module serves as a modular connection point for
wiring and integrating SIMATIC ET200S electronic modules (EM) and
other field devices.
- It allows for the easy and flexible connection of sensors,
actuators, and other I/O components to the ET200S system.
5. Features:
- The terminal module provides a standardized interface for
connecting SIMATIC ET200S electronic modules.
- It simplifies the wiring and installation of ET200S components
within an industrial automation system.
- The TM-E15S24-AT model specifically supports 15 screw-type
connection terminals.
- It has an additional 24V DC power supply connection integrated
into the terminal block.
6. Applications:
- This SIMATIC ET200S Terminal Module is designed for use in
distributed I/O applications that employ the ET200S system.
- It enables the modular integration of various I/O devices and
sensors into the ET200S network.
- The integrated power supply connection can be useful for powering
field devices directly from the terminal module.
7. Compatibility:
- As a SIMATIC ET200S component, this terminal module is designed
to be compatible with other ET200S devices and systems.
The key difference between this 6ES7193-4CL20-0AA0 model and the
previous ET200S terminal modules we discussed is the number of
connection terminals and the integrated 24V DC power supply.
The TM-E15S24-AT model has 15 screw-type terminals, compared to the
30-terminal models we reviewed earlier. Additionally, it includes a
built-in 24V DC power supply connection, which can simplify the
wiring and power distribution in some applications.
Overall, this terminal module provides a flexible and modular way
to connect SIMATIC ET200S electronic modules and other field
devices to the ET200S distributed I/O system, with the added
benefit of the integrated power supply.
Please let me know if you need any additional details or have
further questions!
| Product |
| Article Number (Market Facing Number) | 6ES7193-4CL20-0AA0 |
| Product Description | *** Spare part *** SIMATIC DP, 1 terminal module TM-E15S24-AT for
ET 200S, for electronic module 2 AI TC High Feature, 15 mm width,
Screw terminals, without terminal access to AUX1, AUX1 continuous |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.10.2023 |
| Notes | This product is a Spare Part, please visit the Spares & Service
section for more information If you need assistance please contact our local Siemens office |
| Price data |
| Region Specific PriceGroup / Headquarter Price Group | S20 / 2ET |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 0,068 Kg |
| Packaging Dimension | 5,00 x 13,90 x 2,80 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515067627 |
| UPC | 662643114324 |
| Commodity Code | 85389099 |
| LKZ_FDB/ CatalogID | ST76 |
| Product Group | 4467 |
| Group Code | R151 |
| Country of origin | Romania |
