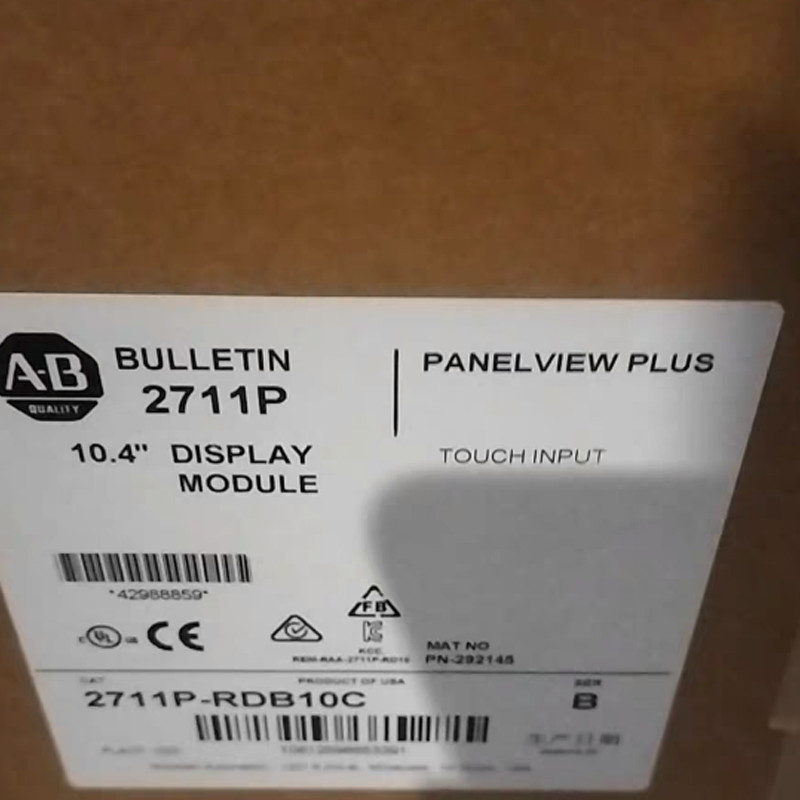

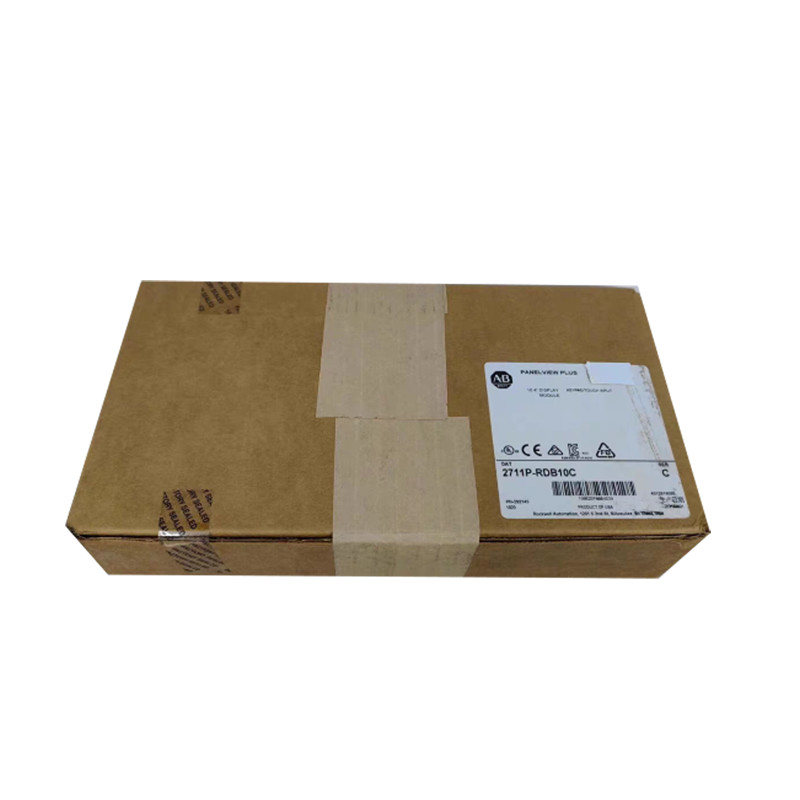

ALLEN BRADLEY 2711P-RDB10C PANELVIEW PLUS DISPLAY MODULE
Got it, let's take a closer look at the Allen-Bradley 2711P-RDB10C
PanelView Plus Display Module:
1. Product Name:
- Allen-Bradley 2711P-RDB10C PanelView Plus Display Module
2. Description:
- This is a touchscreen display module from Rockwell Automation's
Allen-Bradley brand, part of the PanelView Plus product line.
- It is designed for use as a human-machine interface (HMI) in
industrial automation and control applications.
3. Key Features:
- 10.4-inch color TFT touchscreen display
- SVGA resolution of 800 x 600 pixels
- Supports multiple touch technologies, including resistive and
projected capacitive
- Integrated Ethernet and serial communication interfaces
- Runs on Windows CE 6.0 operating system
4. Applications:
- The 2711P-RDB10C PanelView Plus display module is suitable for a
wide range of industrial applications, including:
- Operator interface for machine control and automation
- Process visualization and monitoring
- HMI for industrial control systems
- Supervisory control and data acquisition (SCADA) systems
5. Connectivity:
- The display module features Ethernet, serial, and USB interfaces
for communication and integration with industrial control systems.
- It supports various industrial communication protocols, such as
Ethernet/IP, Modbus TCP/IP, and DF1.
6. Capabilities:
- 10.4-inch color TFT touchscreen display
- SVGA resolution of 800 x 600 pixels
- Supports resistive and projected capacitive touch technologies
- Integrated Ethernet and serial communication interfaces
- Runs on Windows CE 6.0 operating system
- Extensive library of pre-built HMI screens and templates
7. Compatibility:
- The 2711P-RDB10C PanelView Plus display module is designed to be
compatible with Allen-Bradley and Rockwell Automation industrial
control systems, including ControlLogix and CompactLogix PLCs.
- It can also be integrated into a wide range of industrial
automation and control architectures.
The key features of this PanelView Plus display module are the
large 10.4-inch color touchscreen, the support for multiple touch
technologies, and the integrated communication interfaces.
The Windows CE-based operating system and the extensive library of
pre-built HMI screens and templates provide a user-friendly and
flexible platform for developing custom operator interfaces.
The Ethernet and serial connectivity, along with the support for
industrial communication protocols, enable seamless integration
with various industrial control systems and automation networks.
Overall, the Allen-Bradley 2711P-RDB10C PanelView Plus Display
Module is a versatile and high-performance HMI solution for
industrial automation and control applications.
Please let me know if you have any other questions!
Mechanical
| Width | 399 mm |
|---|
| Height | 248 mm |
|---|
| Depth | 55 mm |
|---|
| Weight, approx | 2.9 kg |
|---|
| Cutout dimensions | 224 x 375 mm |
|---|
Electrical
| Number of pixels, vertical | 480 |
|---|
| Number of pixels, horizontal | 640 |
|---|
| Display size | 10.4 inch |
|---|
| Luminance | 300 cd/m2 (Nits) |
|---|
| Input voltage | 85...264V AC |
|---|
| Backlight | CCFL, 50000 hours life, minimum |
|---|
| Operator input | Keypad, touch |
|---|
| Power consumption | 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC) |
|---|
| Operating force, keypad | 340 g |
|---|
| Line frequency | 47 Hz |
|---|
| Operating force, touch screen | 10 g |
|---|
| Remote power input voltage | 85...264V AC |
|---|
| Remote power consumption | 120VA maximum |
|---|
| External CompactFlash storage | 512 MB maximum |
|---|
| PCI slot available power supply, max | 11 W DC, 5 W AC |
|---|
| Touch screen | Analog resistive |
|---|
| Actuation rating, touch screen | 1 million presses |
|---|
| Actuation rating, keypad | 1 million presses |
|---|
| LED indicators | COMM (Green), fault (Red) |
|---|
| Battery life | 4 year minimum at 25 °C (77 °F) |
|---|
| Keypad function keys | Function keys, numeric and navigation |
|---|
| Clock | Battery-backed, +/-2 minutes per month |
|---|
| Application flash memory | 20 MB for logic modules, series A to D |
|---|
| Display type | Color active matrix, thin-film transistor (TFT) with liquid crystal
display (LCD) |
|---|
Environmental
| Operating temperature | 0 °C |
|---|
| Nonoperating temperature | -25 °C |
|---|
| Shock | Operating: 15 G at 11 ms |
|---|
| Degree of protection (IP) | IP65 |
|---|
| Altitude, operating | 2000 m |
|---|
| List of degrees of protection (IP) | IP54, IP65 |
|---|
| Heat dissipation | 240 BTU/hr |
|---|
| Relative humidity | 5...95% without condensation |
|---|
| Enclosure rating | NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65 |
|---|
| Vibration | 10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak
acceleration |
|---|
Construction
| Display area | 211 x 158 mm |
|---|
| Description | 1000 keypad and touch color display |
|---|
Documentation
| RESOURCE | PUBLICATION NUMBER |
|---|
| Selection Guide |
VIEW-SG001 |
