Thin Film EVC141 IFM Cable Connector With Socket ADOGF030MSS0002H03

Ask Lasest Price
Brand Name :	IFM
Model Number :	EVC141
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	100
Delivery Time :	10-12Days

Add to Cart

Product Details
Company Profile

Thin Film EVC141 IFM Cable Connector With Socket ADOGF030MSS0002H03

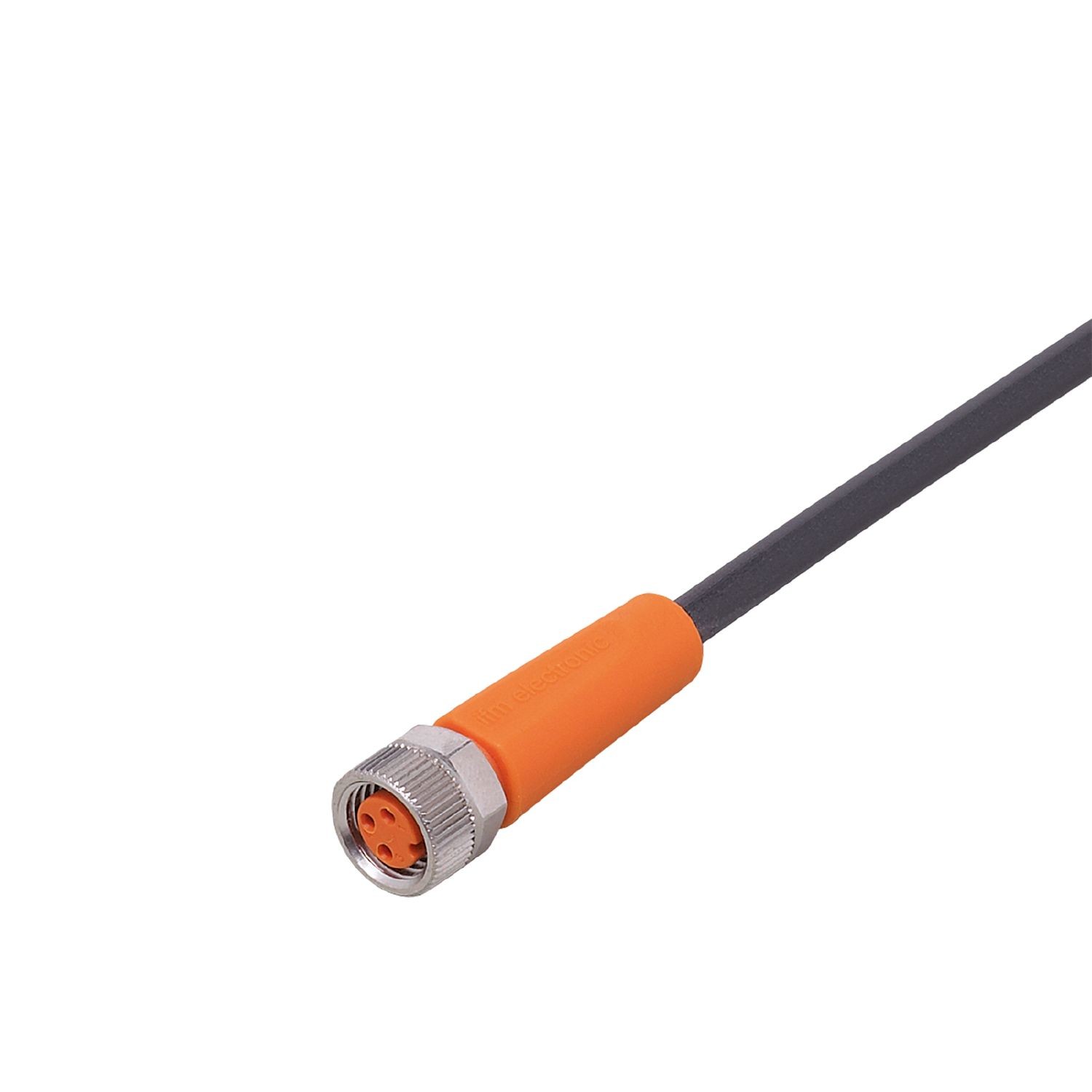

IFM Connecting cable with socket EVC141 ADOGF030MSS0002H03

The IFM EVC141 ADOGF030MSS0002H03 is a connecting cable with a socket. Here's some information about the cable:

1. Model: EVC141 ADOGF030MSS0002H03
2. Manufacturer: IFM Electronic GmbH
3. Function: The connecting cable is used to establish a connection between a sensor or device and its corresponding socket or connector. It provides a means of transmitting power, signals, and data between the sensor/device and the system it is connected to.
4. Cable Length: The specific cable length is indicated by the "0002" in the model number, which suggests a cable length of 2 meters. The "H03" at the end of the model number may represent a different cable length coding. It's recommended to consult the product documentation or datasheet for the accurate cable length information.
5. Socket Type: The cable is designed to connect with a specific socket or connector type, which is not explicitly mentioned in the model number. You would need to refer to the product documentation or datasheet to identify the exact socket type and compatibility.
6. Electrical Connection: The cable likely supports a specific electrical connection type, such as a connector or plug type, to establish the electrical connection between the sensor/device and the system. The "ADOGF030MSS" in the model name may provide information about the specific electrical connection type, but without further details, it is difficult to determine the exact characteristics of the electrical connection.

For detailed specifications, compatibility information, and further details about the IFM EVC141 ADOGF030MSS0002H03 connecting cable with socket, it is recommended to consult the official documentation provided by IFM Electronic GmbH or contact their technical support. They will be able to provide you with accurate and up-to-date information based on your specific requirements and the latest product information available.

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

cULus: ...80 °C

Ambient temperature (moving) [°C]

-25...90

Note on ambient temperature (moving)

cULus: ...80 °C

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

51.6

Dimensions [mm]

10 x 10 x 31

Materials

housing: TPU orange; Sealing: FKM

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity

1 pcs.

Electrical connection

Cable: 2 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection

Connector: 1 x M8, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
