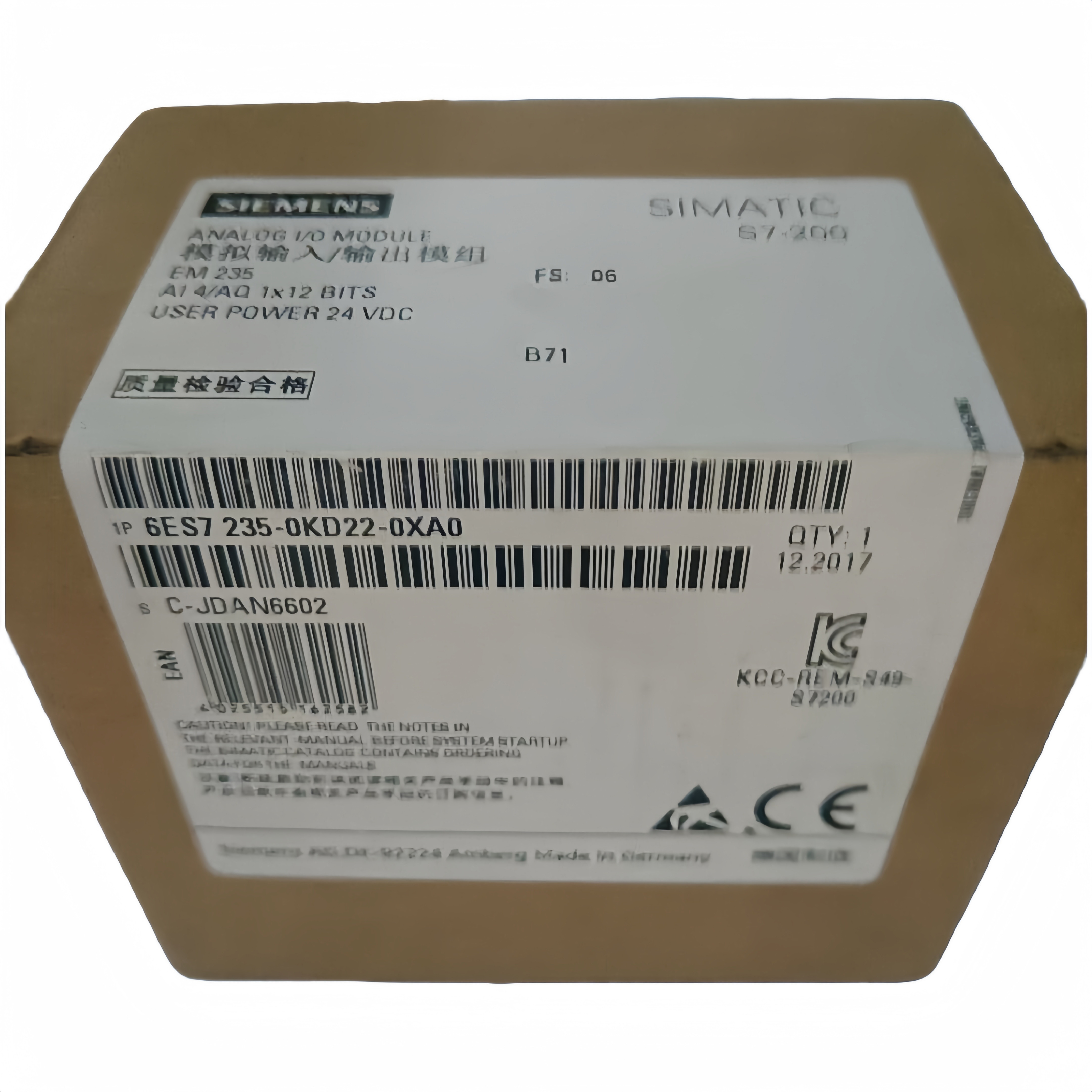

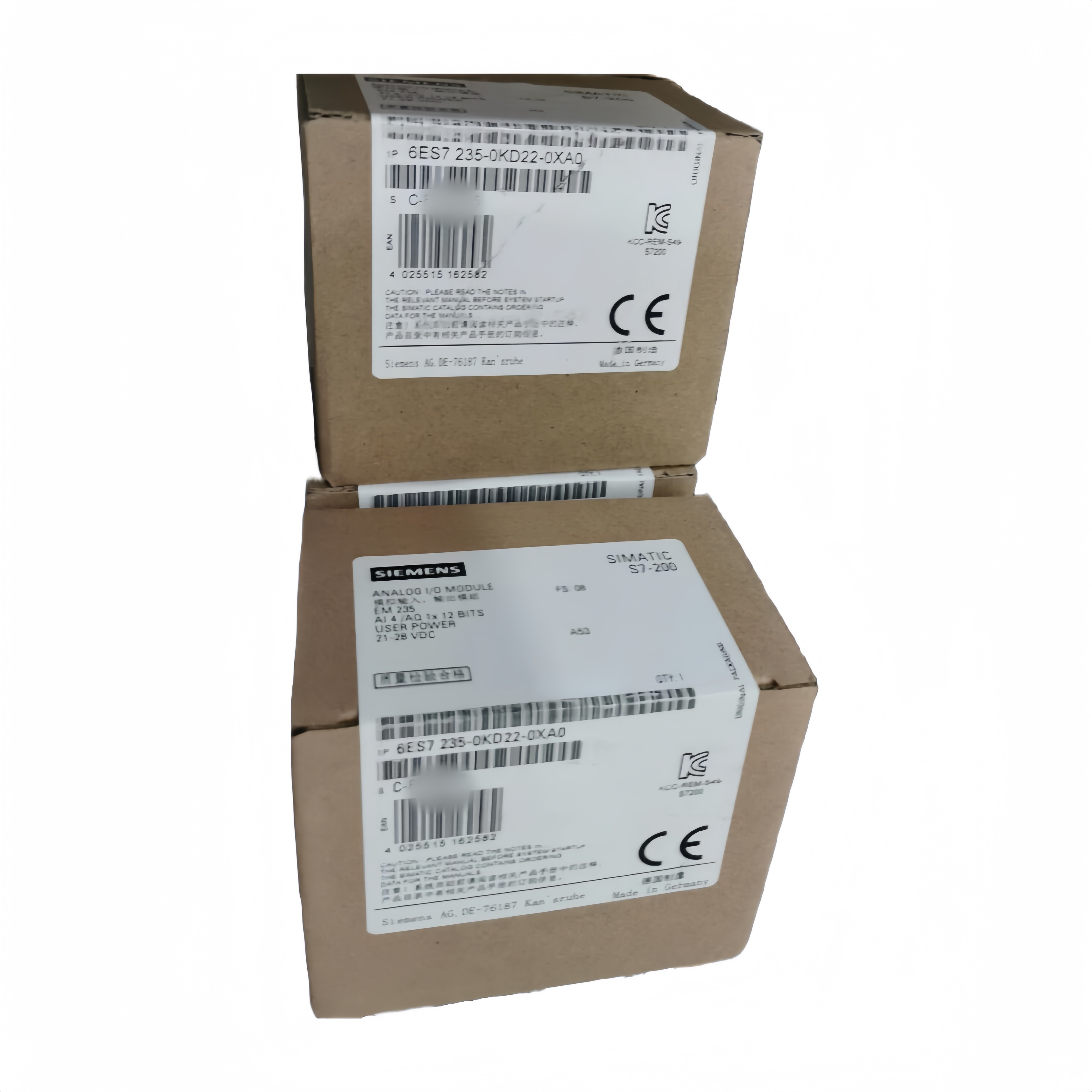

SIEMENS SIMATIC S7-200 PLC 6ES7235-0KD22-0XA0 EM 235 Analog
Combination 4 Inputs/1 Output
Product Description:
The SIEMENS SIMATIC S7-200 PLC 6ES7235-0KD22-0XA0 EM 235 is an
analog combination module that provides 4 analog input channels and
1 analog output channel. This module is designed for use with the
SIMATIC S7-200 PLC series and allows for the measurement and
control of analog signals in automation applications.
Specifications:
- Module Type: Analog Combination
- Number of Input Channels: 4 (Analog Inputs)
- Number of Output Channels: 1 (Analog Output)
- Input Type: Voltage or Current
- Input Signal Range: 0-10V or 0-20mA
- Output Type: Voltage or Current
- Output Signal Range: 0-10V or 0-20mA
Origin: Siemens products are manufactured by Siemens AG, a
multinational conglomerate headquartered in Germany.
Application Range:
The EM 235 analog combination module is suitable for a wide range
of industrial automation applications that require the measurement
and control of analog signals. It can be used in industries such as
manufacturing, process control, machine building, and more.
Application Examples:
1. Temperature Control: The EM 235 module can be used to measure
temperature using thermocouples or RTD sensors and control heating
or cooling systems accordingly. The analog inputs can be connected
to temperature sensors, while the analog output can be used to
control heating elements or cooling devices.
2. Pressure Control: In process control applications, the module
can be utilized to measure pressure using pressure transducers and
control pressure-regulating valves or pumps. The analog inputs can
be connected to pressure sensors, while the analog output can be
used to control actuators for pressure regulation.
3. Level Control: The module can be applied in level control
systems to measure the level of liquids or solids using level
sensors and control pumps or valves for level management. The
analog inputs can be connected to level sensors, while the analog
output can be used to control actuators for level regulation.
4. Flow Control: The module can be used in flow control
applications to measure flow rates using flow meters and control
valves or pumps for flow regulation. The analog inputs can be
connected to flow sensors, while the analog output can be used to
control actuators for flow regulation.
These are just a few examples of the wide range of applications
where the SIEMENS SIMATIC S7-200 PLC 6ES7235-0KD22-0XA0 EM 235
analog combination module can be utilized. Its versatile analog
inputs and output, precise measurement capabilities, and
compatibility with the SIMATIC S7-200 PLC series make it a suitable
choice for various industrial automation scenarios.
| Product |
| Article Number (Market Facing Number) | 6ES7235-0KD22-0XA0 |
| Product Description | ***Spare part*** SIMATIC S7-200, analog I/O EM 235, only for S7-22X
CPU, 4 AI, +/-10 V DC; 1 AO, +/-10 V DC 12 bit converter |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.10.2017 |
| Notes | This product is a Spare Part, please visit the Spares & Service
section for more information If you need assistance please contact our local Siemens office |
| Price data |
| Region Specific PriceGroup / Headquarter Price Group | S20 / 2ET |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 0,162 Kg |
| Packaging Dimension | 8,60 x 10,10 x 7,00 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515162582 |
| UPC | Not available |
| Commodity Code | 85389091 |
| LKZ_FDB/ CatalogID | ST9-E5 |
| Product Group | 4557 |
| Group Code | R131 |
| Country of origin | China |
