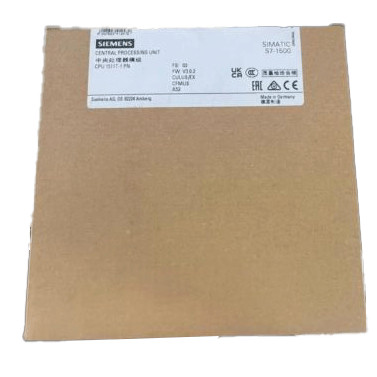

SIEMENS PLC SIMATIC S7-1500 CPU 1511T-1 PN 6ES7511-1TL03-0AB0
ROFINET IRT
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 TL 6ES7511-1TL03-0AB0 is
a compact and reliable central processing unit (CPU) designed for
industrial automation applications. It is part of the SIEMENS
SIMATIC S7-1500 series, known for its performance, flexibility, and
advanced features.
Product Information and Specifications:
- Model: CPU 1511-1 TL 6ES7511-1TL03-0AB0
The CPU 1511-1 TL is a compact CPU that delivers reliable and
precise control for automation tasks. It is equipped with a
reliable processor that ensures efficient execution of control
programs. The CPU supports multiple programming languages,
including ladder logic, function blocks, and structured text,
providing flexibility and ease of use for various control tasks.
In terms of memory capacity, the CPU 1511-1 TL offers sufficient
storage space for programs and data. Although specific details were
not provided in the query, typical configurations of the CPU
include program memory ranging from 150 KB to 300 KB and data
memory ranging from 300 KB to 500 KB. This allows users to store
their control programs and necessary data structures for the PLC's
operation.
The CPU 1511-1 TL is designed for compact applications and offers
reliable and precise control. It supports various communication
interfaces, enabling seamless integration with other devices and
systems within the automation network.
Programming and configuration of the CPU 1511-1 TL are typically
performed using Siemens' TIA Portal (Totally Integrated Automation
Portal) software. The TIA Portal provides a comprehensive
engineering environment for efficient programming, simulation, and
diagnostics, ensuring easy development and maintenance of
automation projects.
Product Attributes:
- Model: CPU 1511-1 TL 6ES7511-1TL03-0AB0
- Processor: Reliable processor for efficient control program
execution
- Programming Languages: Supports ladder logic, function blocks,
and structured text
- Memory Capacity: Sufficient storage space for programs and data
- Communication Interfaces: Supports various communication
interfaces
- Engineering Software: Programmed and configured using Siemens'
TIA Portal
- Compact Design: Space-saving solution for compact applications
In summary, the SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 TL
6ES7511-1TL03-0AB0 is a compact and reliable CPU that provides
efficient performance, sufficient memory capacity, and seamless
communication capabilities. It is designed to deliver precise and
reliable control for various industrial automation applications,
making it suitable for compact automation solutions.
| General information |
| Product type designation | CPU 1511T-1 PN |
| HW functional status | FS01 |
| Firmware version | V3.0 |
| ● FW update possible | Yes |
| Product function |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 500 µs
(distributed) and 1 ms (central) |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version | V18 (FW V3.0); with older TIA Portal versions configurable as
6ES7511-1TK01-0AB0 |
| Configuration control |
| via dataset | Yes |
| Display |
| Screen diagonal [cm] | 3.45 cm |
| Control elements |
| Number of keys | 8 |
| Mode buttons | 2 |
| Supply voltage |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering |
| ● Mains/voltage failure stored energy time | 5 ms |
| ● Repeat rate, min. | 1/s |
| Input current |
| Current consumption (rated value) | 0.73 A |
| Current consumption, max. | 0.94 A |
| Inrush current, max. | 1.15 A; Rated value |
| I²t | 0.5 A²·s |
| Power |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 5.5 W |
| Power loss |
| Power loss, typ. | 3.4 W |
| Memory |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory |
| ● integrated (for program) | 450 kbyte |
| ● integrated (for data) | 1.5 Mbyte |
| Load memory |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Backup |
| ● maintenance-free | Yes |
| CPU processing times |
| for bit operations, typ. | 25 ns |
| for word operations, typ. | 32 ns |
| for fixed point arithmetic, typ. | 42 ns |
| for floating point arithmetic, typ. | 170 ns |
| CPU-blocks |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the
user: 1 ... 59 999, and number range of DBs created via SFC 86: 60
000 ... 60 999 |
| ● Size, max. | 1.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 450 kbyte |
| FC |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 450 kbyte |
| OB |
| ● Size, max. | 450 kbyte |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 250 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 2 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| Nesting depth |
| ● per priority class | 24 |
| Dimensions |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weights |
| Weight, approx. | 336 g |
