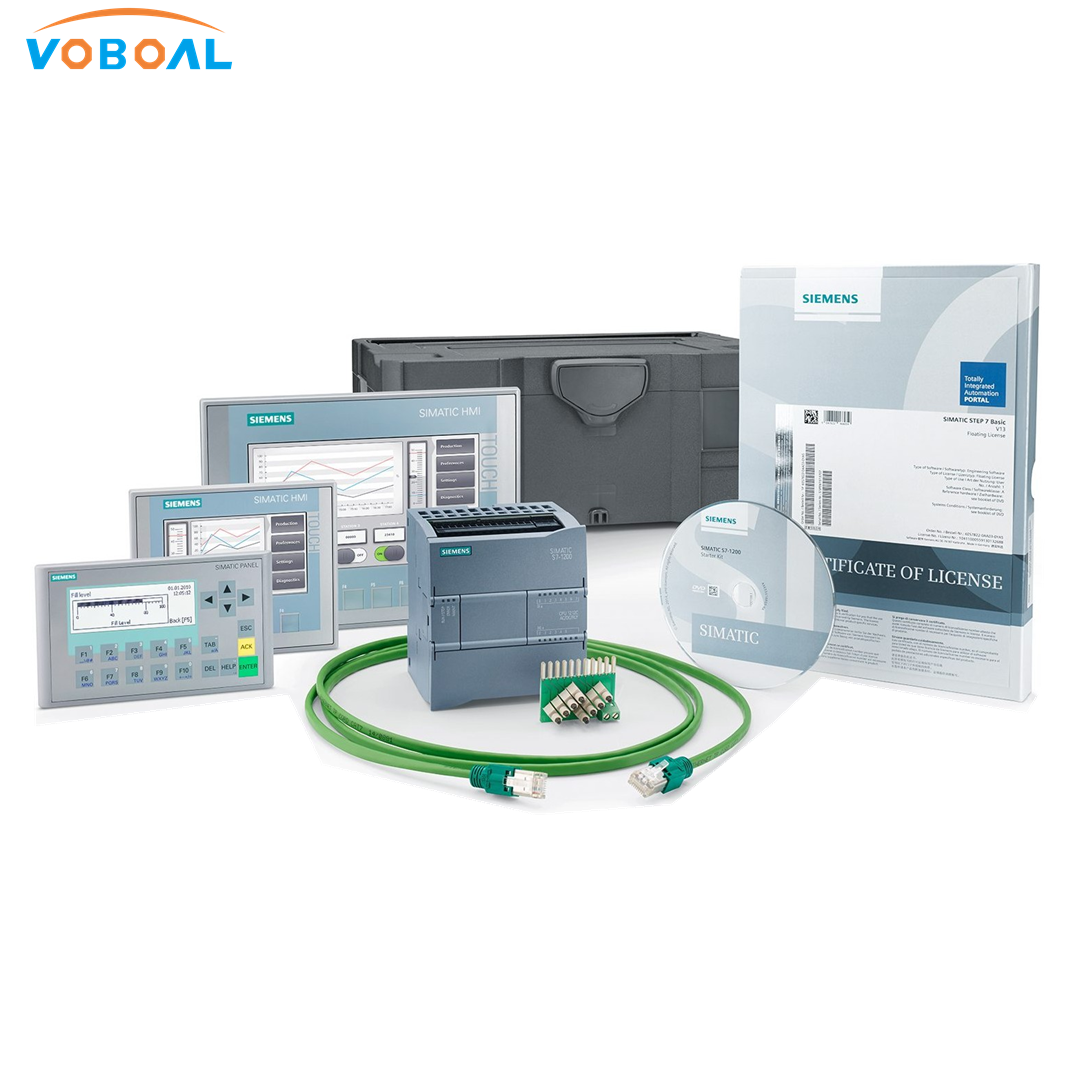

SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200

    Buy cheap SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200 from wholesalers

    Buy cheap SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200 from wholesalers
    • Buy cheap SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200 from wholesalers

    SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200

    Ask Lasest Price
    Brand Name : SIEMENS
    Model Number : 6ES7211-1AD30-0XB0
    Certification : CE
    Price : 150 USD
    Payment Terms : L/C, T/T
    Supply Ability : 5pc
    Delivery Time : 5-10days
    • Product Details
    • Company Profile

    SIEMENS CPU PLC 1211C DC/DC/DC 6ES7211-1AD30-0XB0 SIMATIC S7-1200

    SIEMESN CPU 1211C DC/DC/DC 6ES7 211-1AD30-0XB0 SIMATIC S7-1200


    Technical Specifications
    ModelCPU 1211C
    AC/DC/Relay
    CPU 1211C
    DC/DC/Relay
    CPU 1211C
    DC/DC/DC
    Order number (MLFB)6ES7 211-1BD30-0XB06ES7 211-1HD30-0XB06ES7 211-1AD30-0XB0
    General
    Dimensions W x H x D (mm)90 x 100 x 75
    Weight420 grams380 grams370 grams
    Power dissipation10 W8 W
    Current available (CM bus)750 mA max. (5 VDC)
    Current available (24 VDC)300 mA max. (sensor power)
    Technical Specifications
    ModelCPU 1211C
    AC/DC/Relay
    CPU 1211C
    DC/DC/Relay
    CPU 1211C
    DC/DC/DC
    Digital input current consumption
    (24VDC)
    4 mA/input used
    CPU Features
    User memory25 Kbytes Work memory / 1 Mbytes Load memory / 2 Kbytes Retentive memory
    On-board digital I/O6 inputs/4 outputs
    On-board analog I/O2 inputs
    Process image size1024 bytes of inputs/1024 bytes of outputs
    Signal modules expansionnone
    Signal board expansion1 SB max.
    Communication module expansion3 CMs max.
    High-speed counters3 total
    Single phase: 3 at 100 kHz
    Quadrature phase: 3 at 80 kHz
    Pulse outputs2 at 1 Hz pulse rate2 at 100 kHz pulse rate
    Pulse catch inputs6
    Time delay / cyclic interrupts4 total with 1 ms resolution
    Edge interrupts6 rising and 6 falling (10 and 10 with optional signal board)
    Memory cardSIMATIC Memory Card (optional)
    Real time clock accuracy+/- 60 seconds/month
    Real time clock retention time10 days typ./6 days min. at 40°C (maintenance-free Super Capacitor)
    Performance
    Boolean execution speed0.1 μs/instruction
    Move Word execution speed12 μs/instruction
    Real Math execution speed18 μs/instruction
    Communication
    Number of ports1
    TypeEthernet
    Data rates10/100 Mb/s
    Isolation (external signal to PLC
    logic)
    Transformer isolated, 1500 VDC
    Cable typeCAT5e shielded
    Power supply
    Voltage range85 to 264 VAC20.4 to 28.8 VDC
    Line frequency47 to 63 Hz--
    Input current
    CPU only at max. load
    CPU with all expansion accessories
    at max. load
    60 mA at 120 VAC
    30 mA at 240 VAC
    180 mA at 120 VAC
    90 mA at 240 VAC
    300 mA at 24 VDC
    900 mA at 24 VDC
    Inrush current (max.)20 A at 264 VAC12 A at 28.8 VDC
    Isolation (input power to logic)1500 VACNot isolated
