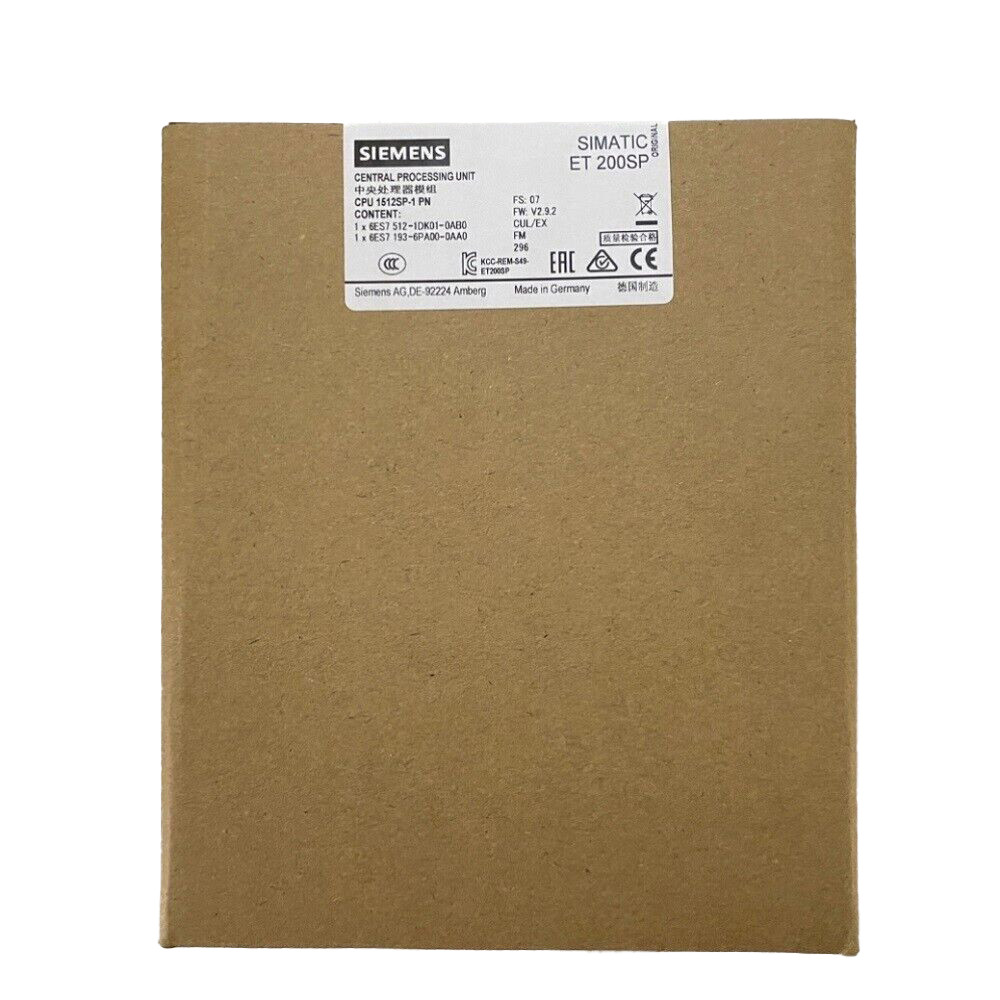

SIEMENS PLC SIMATIC S7-1500 CPU 1512SP-1 PN 6ES7512-1DK01-0AB0
CENTRAL PROCESSING UNIT WITH
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 CPU 1512SP-1 PN 6ES7512-1DK01-0AB0
is a central processing unit (CPU) designed for industrial
automation applications. It belongs to the Siemens SIMATIC S7-1500
series, known for its advanced functionality, high performance, and
reliability.
Product Information and Specifications:
- Model: CPU 1512SP-1 PN 6ES7512-1DK01-0AB0
The CPU 1512SP-1 PN features a powerful processor that ensures fast
and efficient execution of control programs. It supports multiple
programming languages, including ladder logic, function blocks, and
structured text, providing flexibility and ease of programming for
complex control tasks.
In terms of memory capacity, the CPU 1512SP-1 PN offers sufficient
storage space for both program and data. While specific details
were not provided in the query, typical configurations of the CPU
include program memory ranging from 750 KB to 1 MB and data memory
ranging from 250 KB to 1 MB. This memory capacity allows users to
store their control programs and necessary data structures for the
PLC's operation.
The CPU 1512SP-1 PN is designed to operate in demanding industrial
environments, delivering reliable and precise control for
applications such as manufacturing, process control, and machine
automation. It supports a wide range of communication interfaces,
including PROFINET, enabling seamless integration with other
devices and systems in the automation network.
The CPU 1512SP-1 PN is equipped with an onboard PROFINET interface,
which simplifies the connection to the network and facilitates
communication with other devices in the automation system. It also
supports distributed I/O, allowing for flexible and scalable system
architectures.
The CPU 1512SP-1 PN is typically programmed and configured using
Siemens' TIA Portal (Totally Integrated Automation Portal)
software. The TIA Portal provides a comprehensive engineering
environment for efficient programming, simulation, and diagnostics,
ensuring easy development and maintenance of automation projects.
Product Attributes:
- Model: CPU 1512SP-1 PN 6ES7512-1DK01-0AB0
- Processor: Powerful processor for fast and efficient execution of
control programs
- Programming Languages: Supports ladder logic, function blocks,
and structured text
- Memory Capacity: Sufficient storage space for program and data
- Communication Interfaces: Supports PROFINET
- Onboard PROFINET Interface: Simplifies network connection and
communication with other devices
- Distributed I/O Support: Enables flexible and scalable system
architectures
- Engineering Software: Programmed and configured using Siemens'
TIA Portal
- Suitable for: Manufacturing, process control, and machine
automation applications
In summary, the SIEMENS PLC SIMATIC S7-1500 CPU 1512SP-1 PN
6ES7512-1DK01-0AB0 is a reliable CPU with advanced features,
sufficient memory capacity, and seamless communication
capabilities. It provides efficient and precise control for
industrial processes, making it suitable for a wide range of
industrial automation applications.
| General information |
| Product type designation | CPU 1512SP-1 PN |
| HW functional status | FS05 |
| Firmware version | V2.9 |
| Product function |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| ● Isochronous mode | Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher |
| Configuration control |
| via dataset | Yes |
| Control elements |
| Mode selector switch | 1 |
| Supply voltage |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering |
| ● Mains/voltage failure stored energy time | 5 ms |
| Input current |
| Current consumption (rated value) | 0.6 A |
| Current consumption, max. | 0.9 A |
| Inrush current, max. | 4.7 A; Rated value |
| I²t | 0.14 A²·s |
| Power |
| Infeed power to the backplane bus | 8.75 W |
| Power loss |
| Power loss, typ. | 5.6 W |
| Memory |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory |
| ● integrated (for program) | 200 kbyte |
| ● integrated (for data) | 1 Mbyte |
| Load memory |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Backup |
| ● maintenance-free | Yes |
| CPU processing times |
| for bit operations, typ. | 48 ns |
| for word operations, typ. | 58 ns |
| for fixed point arithmetic, typ. | 77 ns |
| for floating point arithmetic, typ. | 307 ns |
| CPU-blocks |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the
user: 1 ... 59 999, and number range of DBs created via SFC 86: 60
000 ... 60 999 |
| ● Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 200 kbyte |
| FC |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 200 kbyte |
| OB |
| ● Size, max. | 200 kbyte |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 1 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| Nesting depth |
| ● per priority class | 24 |
| Counters, timers and their retentivity |
| S7 counter |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC counter |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| S7 times |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC timer |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| Data areas and their retentivity |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; Available retentive memory for bit memories, timers,
counters, DBs, and technology data (axes): 88 KB |
| Flag |
| ● Size, max. | 16 kbyte |
| ● Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Data blocks |
| ● Retentivity adjustable | Yes |
| ● Retentivity preset | No |
| Local data |
| ● per priority class, max. | 64 kbyte; max. 16 KB per block |
| Address area |
| Number of IO modules | 2 048; max. number of modules / submodules |
| I/O address area |
| ● Inputs | 32 kbyte; All inputs are in the process image |
| ● Outputs | 32 kbyte; All outputs are in the process image |
| per integrated IO subsystem |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| per CM/CP |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| Dimensions |
| Width | 100 mm |
| Height | 117 mm |
| Depth | 75 mm |
| Weights |
| Weight, approx. | 310 g |
