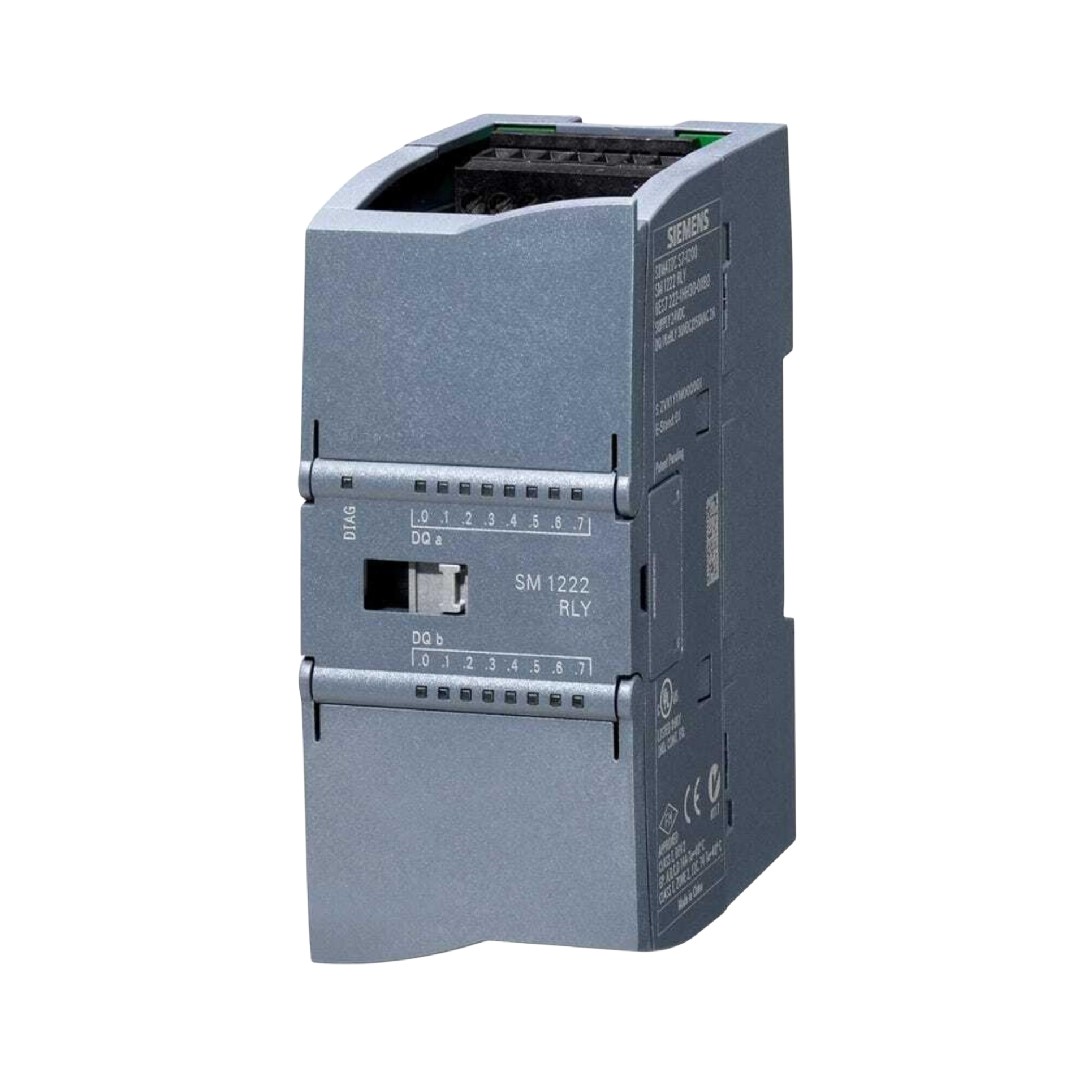

SIEMENS SIMATIC PLC S7-1200 6ES7 222-1HH30-0XB0 SM1222 16 X RELAY
OUTPUT SIGNAL MODULES
Product Name: SIEMENS SIMATIC PLC S7-1200 6ES7 222-1HH30-0XB0
SM1222 16 x Relay Output Signal Modules
Introduction:
The SIEMENS SIMATIC PLC S7-1200 6ES7 222-1HH30-0XB0 is a signal
module, specifically the SM1222 variant, designed to provide 16
relay output channels. It is part of the SIMATIC S7-1200 series,
known for its reliability, flexibility, and ease of use.
This signal module enables the connection of various output
devices, such as motors, valves, and alarms, to the SIMATIC S7-1200
programmable logic controller (PLC). It is suitable for
applications that require precise and reliable control of relay
outputs.
With 16 relay output channels, the 6ES7 222-1HH30-0XB0 provides
ample capacity for controlling multiple devices simultaneously.
Each relay output channel is capable of switching up to 250V AC or
30V DC and can handle currents up to 2A.
The module is designed for easy installation on the SIMATIC S7-1200
PLC, providing seamless integration into the automation system. It
is equipped with status LEDs for quick visual indication of the
relay output status and diagnostic information.
Product Features:
- Product Name: SIEMENS SIMATIC PLC S7-1200 6ES7 222-1HH30-0XB0
SM1222
- Signal Module Type: SM1222
- Number of Outputs: 16
- Output Type: Relay
- Maximum Switching Voltage: 250V AC / 30V DC
- Maximum Switching Current: 2A
- Output Delay: Max. 10 ms
- Isolation: Non-isolated
- Communication Interface: -
- Mounting Type: Snap-on to the S7-1200 PLC
- Dimensions (W x H x D): 30 mm x 100 mm x 75 mm
- Weight: Approximately 90 g
Applications:
- Industrial automation
- Machine control systems
- Process control
- Building automation
- Material handling systems
- Packaging systems
- Conveyor systems
The SIEMENS SIMATIC PLC S7-1200 6ES7 222-1HH30-0XB0 SM1222 with 16
x relay output channels is an ideal solution for applications that
require precise control of relay outputs. Its compatibility with
the SIMATIC S7-1200 PLC, reliable performance, and ease of use make
it a versatile choice for various industrial automation
applications.
| Signal modules, communication modules, and signal boards | Order Number |
| SM 1221 8 x 24 VDC Input | 6ES7 221-1BF30-0XB0 | Signal modules |
| SM 1221 16 x 24 VDC Input | 6ES7 221-1BH30-0XB0 |
| SM 1222 8 x 24 VDC Output | 6ES7 222-1BF30-0XB0 |
| SM 1222 16 x 24 VDC Output | 6ES7 222-1BH30-0XB0 |
| SM 1222 8 x Relay Output | 6ES7 222-1HF30-0XB0 |
| SM 1222 16 x Relay Output | 6ES7 222-1HH30-0XB0 |
| SM 1223 8 x 24 VDC Input / 8 x 24 VDC Output | 6ES7 223-1BH30-0XB0 |
| SM 1223 16 x 24 VDC Input / 16 x 24 VDC Output | 6ES7 223-1BL30-0XB0 |
| SM 1223 8 x 24 VDC Input / 8 x Relay Output | 6ES7 223-1PH30-0XB0 |
| SM 1223 16 x 24 VDC Input / 16 x Relay Output | 6ES7 223-1PL30-0XB0 |
| SM 1231 4 x Analog Input | 6ES7 231-4HD30-0XB0 |
| SM 1232 2 x Analog Input | 6ES7 232-4HB30-0XB0 |
| SM 1234 4 x Analog Input / 2 x Analog Output | 6ES7 234-4HE30-0XB0 |
Communication
modules | CM 1241 RS232 | 6ES7 241-1AH30-0XB0 |
| CM 1241 RS485 | 6ES7 241-1CH30-0XB0 |
| Signal boards | SB 1223 2 x 24 VDC Input / 2 x 24 VDC Output | 6ES7 223-0BD30-0XB0 |
| SB 1232 1 Analog Output | 6ES7 232-4HA30-0XB0 |
