IFM Pressure switch with intuitive switch point setting PK6524
PK-010-RFG14-HCPKG/US/ /W
Okay, let's take a look at the IFM Pressure Switch with Intuitive
Switch Point Setting PK6524 PK-010-RFG14-HCPKG/US/ /W:
1. Product Name:
- IFM Pressure Switch with Intuitive Switch Point Setting
2. Model Number:
- PK6524 PK-010-RFG14-HCPKG/US/ /W
3. Description:
- This is a pressure switch from IFM Electronics that features an
intuitive dial-based switch point setting mechanism.
- It is designed for monitoring and controlling pressure in various
industrial applications.
4. Key Features:
- Measurement range of 0 to 10 bar (0 to 145 PSI)
- Accuracy of ±1% of full scale
- Intuitive dial-based switch point setting
- Rugged, IP67-rated housing for industrial environments
- Two programmable switching outputs
- Compact design for easy installation
5. Applications:
- The IFM Pressure Switch PK6524 is suitable for a wide range of
industrial applications, including:
- Pneumatic systems
- Hydraulic systems
- Compressors
- Pumps
- Process control
6. Connectivity:

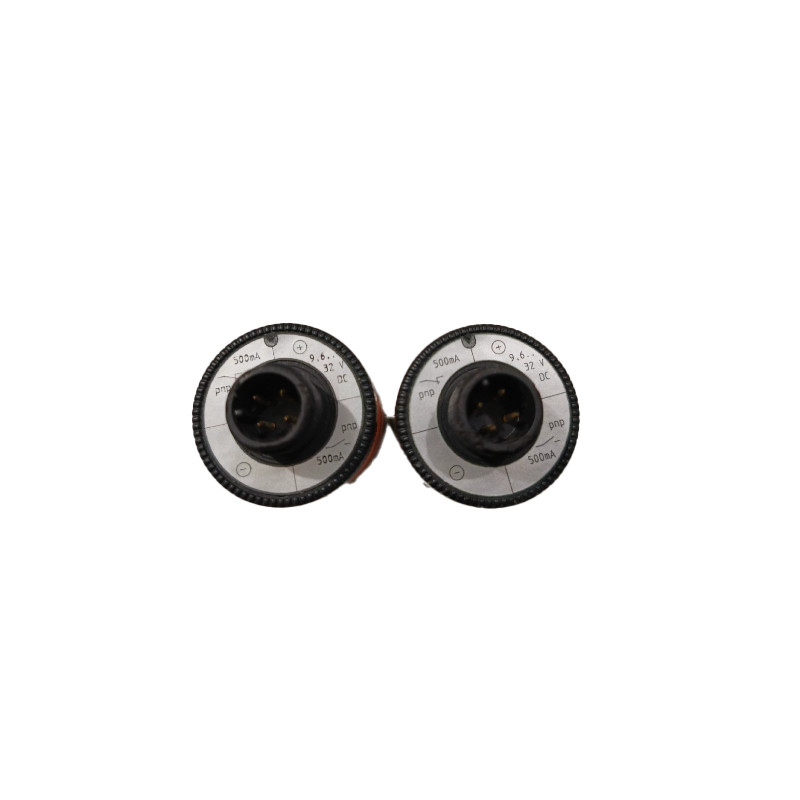

- The pressure switch features a 4-wire, M12 connector for
electrical connection.
- It can be easily integrated into various industrial control
systems and PLC (Programmable Logic Controller) environments.
7. Capabilities:
- Pressure measurement range of 0 to 10 bar (0 to 145 PSI)
- Intuitive dial-based switch point setting for easy configuration
- Two programmable switching outputs
- Adjustable hysteresis for precise control
- Analog output signal (4-20 mA or 0-10 V)
8. Compatibility:
- The PK6524 PK-010-RFG14-HCPKG/US/ /W pressure switch is designed
to be compatible with a wide range of industrial automation systems
and control equipment.
- It can be easily integrated into various industrial control
networks and architectures.
The key feature of this pressure switch is the intuitive dial-based
switch point setting mechanism. This allows for quick and easy
configuration of the switching points, making it a user-friendly
solution for pressure monitoring and control applications.
The two programmable switching outputs, adjustable hysteresis, and
analog output signal provide flexibility in integrating the
pressure switch into control systems and automating
pressure-related tasks.
The rugged, IP67-rated housing ensures the pressure switch can
withstand the demanding environments often found in industrial
settings.
Overall, the IFM Pressure Switch with Intuitive Switch Point
Setting PK6524 PK-010-RFG14-HCPKG/US/ /W is a versatile and
user-friendly solution for pressure monitoring and control in a
variety of industrial applications.
Please let me know if you have any other questions!
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range |
|
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
Application
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25...80 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure | relative pressure |
| MAWP (for applications according to CRN) |
|
Electrical data
| Operating voltage [V] | 9.6...32 DC |
| Current consumption [mA] | < 25 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 500 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
| Set point SP | | 0.5...10 bar | 7.5...145 psi |
|
| Reset point rP |
|
