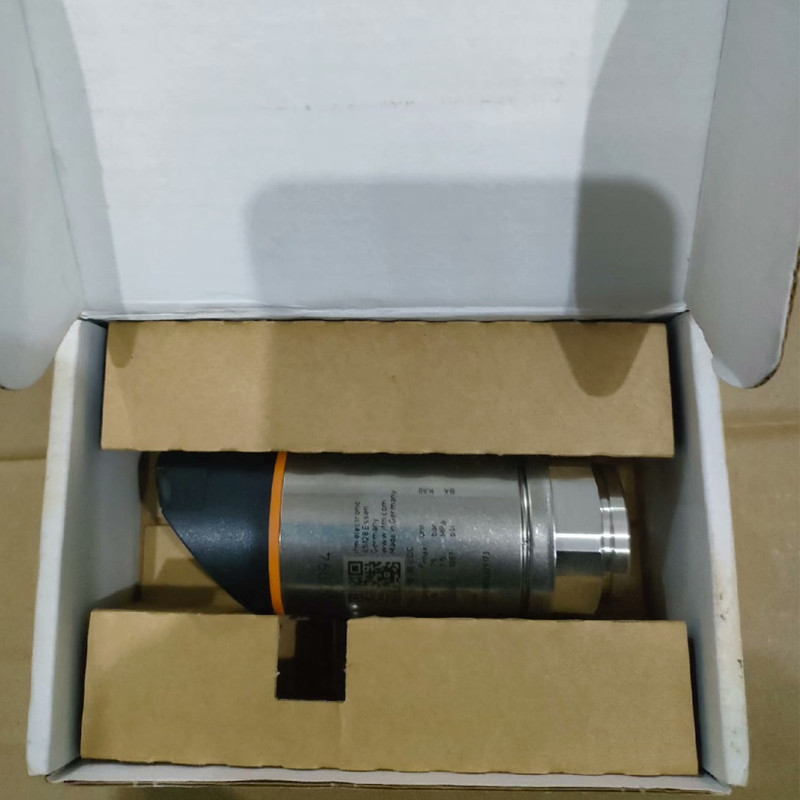

IFM Pressure sensor with display PN2094 PN-010-RER14-MFRKG/US/ /V

Ask Lasest Price
Brand Name :	IFM
Model Number :	PN2094
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	100
Delivery Time :	10-12Days

Add to Cart

Product Details
Company Profile

IFM Pressure sensor with display PN2094 PN-010-RER14-MFRKG/US/ /V

The IFM PN2094 PN-010-RER14-MFRKG/US/V is a pressure sensor with a display manufactured by IFM Electronic GmbH. Here's some information about the sensor:

1. Model: PN2094 PN-010-RER14-MFRKG/US/V
2. Manufacturer: IFM Electronic GmbH
3. Function: The sensor is designed to measure pressure in various industrial applications.
4. Pressure Range: The pressure range supported by the sensor depends on the specific model variant. You would need to refer to the product documentation or datasheet for the exact pressure range of this particular model.
5. Display: The sensor comes equipped with a display that allows for easy monitoring and reading of the pressure measurements.
6. Electrical Connection: The sensor supports a specific electrical connection type, which is indicated by the "/US" in the model name. The exact type of electrical connection may vary, and you should consult the product documentation or datasheet for more details.
7. Process Connection: The sensor has a process connection suitable for the application. The specific process connection type can be identified by the "/V" in the model name. Again, you should refer to the product documentation for precise information.

For detailed specifications, installation guidelines, and compatibility information for the IFM PN2094 PN-010-RER14-MFRKG/US/V pressure sensor, it is recommended to consult the official documentation provided by IFM Electronic GmbH or contact their technical support. They will be able to provide you with accurate and up-to-date information based on your specific requirements and the latest product information available.

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Measuring range

-1...10 bar

-14.6...145 psi

-0.1...1 MPa

Process connection

threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)

Application

Special feature

Gold-plated contacts

Measuring element

ceramic-capacitive pressure measuring cell

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...80

Min. bursting pressure

150 bar

2175 psi

15 MPa

Pressure rating

75 bar

1087 psi

7.5 MPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure; vacuum

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	< 500
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable 1:5)
Max. load [Ω]	500
Analogue voltage output [V]	0...10; (scalable 1:5)
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

-1...10 bar

-14.6...145 psi

-0.1...1 MPa

Analogue start point

-1...8 bar

-14.6...116 psi

-0.1...0.8 MPa

Analogue end point

1...10 bar

14.6...145 psi
