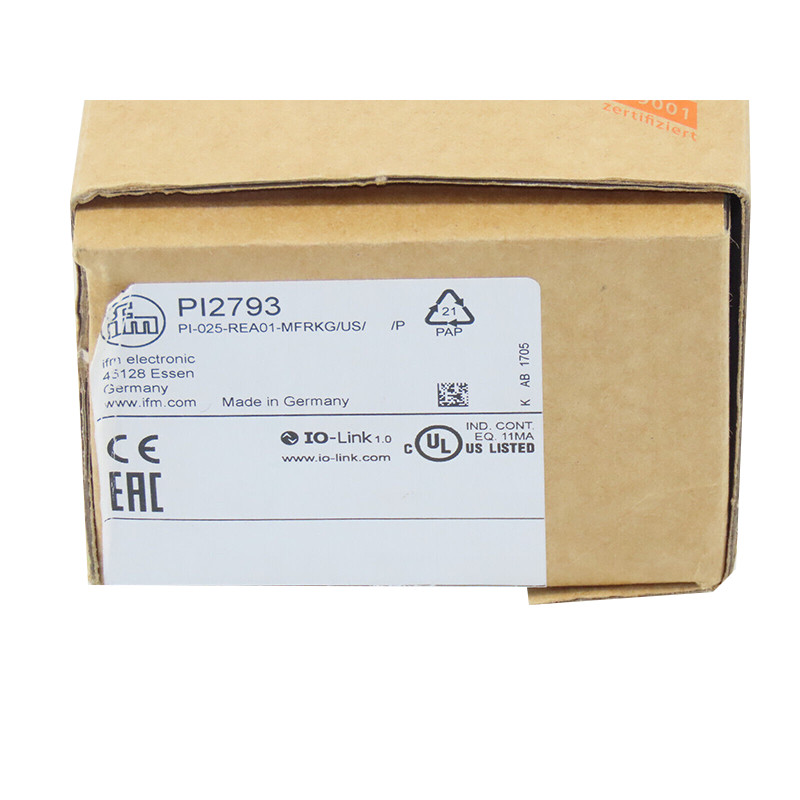

1000Hz PI2793 Electronic IFM Pressure Sensors PI-025-REA01-MFRKG/US/ /P

IFMFlush pressure sensor with display PI2793 PI-025-REA01-MFRKG/US/ /P
The IFM PI2793 PI-025-REA01-MFRKG/US/P is a flush pressure sensor with a display. Here's some information about the sensor:
1. Model: PI2793 PI-025-REA01-MFRKG/US/P
2. Manufacturer: IFM Electronic GmbH
3. Function: The flush pressure sensor is designed to measure the pressure of a fluid in a system or process. It provides real-time pressure readings and features a built-in display for convenient on-site monitoring of the measured values.
4. Pressure Measurement Range: The specific pressure measurement range of the sensor depends on the model variant. Unfortunately, the provided model number does not contain information about the pressure range. It's recommended to refer to the product documentation or datasheet for the exact pressure measurement range of this particular model.
5. Display: The sensor is equipped with a display that allows for easy visualization of the pressure readings. The display may provide numerical values, units of measurement, and possibly additional information or features, depending on the specific model.
6. Electrical Connection: The sensor supports a specific electrical connection type, indicated by the "/US/P" in the model name. The "/US" may represent a connector or electrical connection type compatible with the US market, while the "/P" could indicate additional details regarding the electrical connection or functionality. For precise information, it's best to consult the product documentation or datasheet.
7. Housing Type: The sensor is likely housed in a robust enclosure suitable for industrial environments. The specific details of the housing type or design are not evident from the provided model number.
For detailed specifications, installation guidelines, and compatibility information for the IFM PI2793 PI-025-REA01-MFRKG/US/P flush pressure sensor with display, it is recommended to consult the official documentation provided by IFM Electronic GmbH or contact their technical support. They will be able to provide you with accurate and up-to-date information based on your specific requirements and the latest product information available.
characteristics

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Measuring range

-1...25 bar

-14.4...362.7 psi

-0.1...2.5 MPa

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

Special feature

Gold-plated contacts

Application

flush mountable for the food and beverage industry

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (145 max. 1h)

Min. bursting pressure

350 bar

5075 psi

35 MPa

Pressure rating

100 bar

1450 psi

10 MPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure; vacuum

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

2-wire

Operating voltage [V]	20...32 DC
Current consumption [mA]	3.6...21
Power-on delay time [s]	1

3-wire

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 45
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

2-wire

Max. load [Ω]

300

3-wire

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	125
Max. load [Ω]	(Ub - 10 V) / 20 mA
