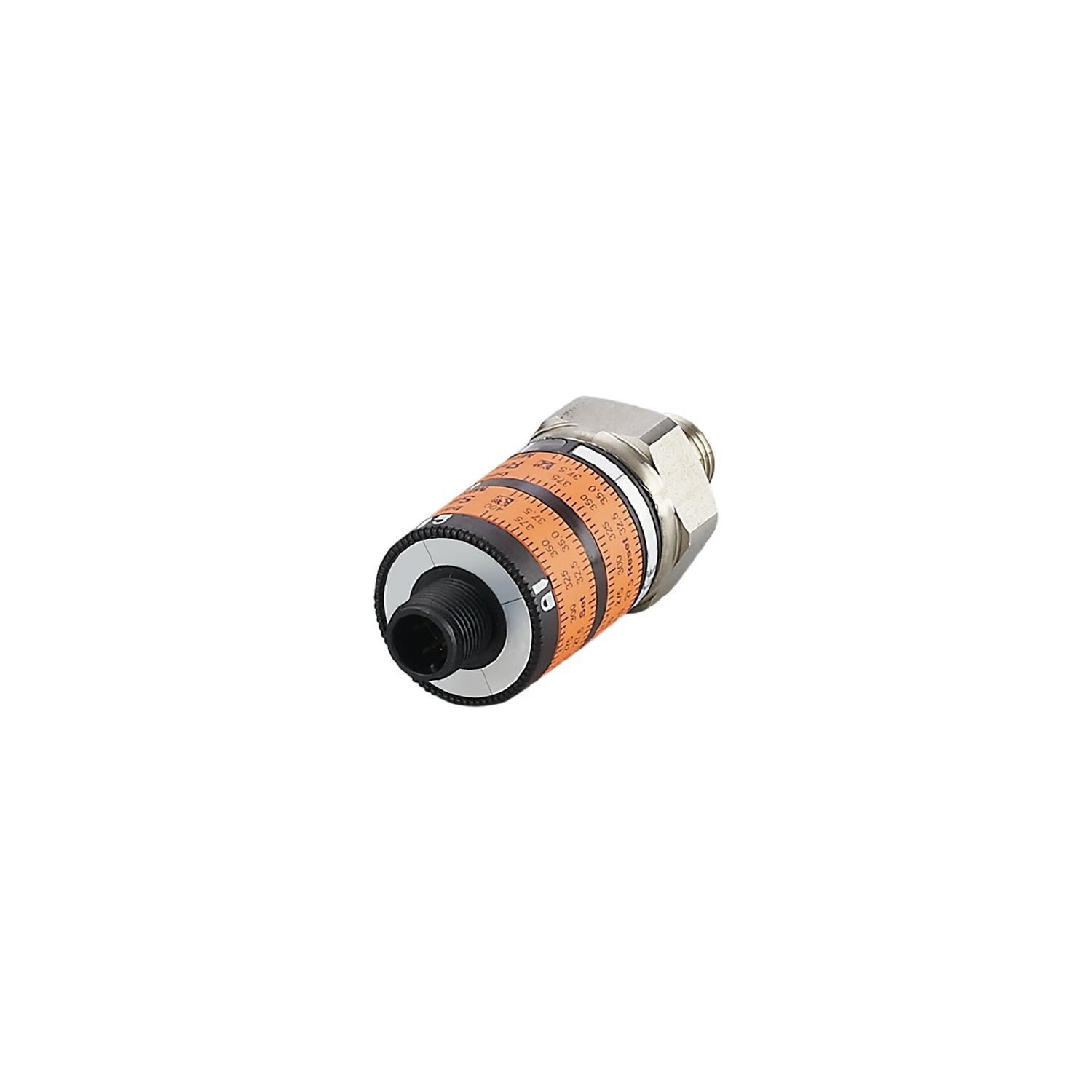

IFM Pressure switch with intuitive switch point setting PK6532 PK-100-SFG14-HCPKG/US/ /W

Ask Lasest Price
Brand Name :	IFM
Model Number :	PK6532
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	100
Delivery Time :	10-12Days

Add to Cart

Product Details
Company Profile

IFM Pressure switch with intuitive switch point setting PK6532 PK-100-SFG14-HCPKG/US/ /W

I'm sorry, but I couldn't find specific information about the IFM PK6532 PK-100-SFG14-HCPKG/US/W pressure switch with an intuitive switch point setting. It's possible that the model you mentioned may not exist, or it may not be listed in the available information I have.

To obtain accurate and up-to-date information about the IFM pressure switch models, including the PK6532 PK-100-SFG14-HCPKG/US/W, I recommend reaching out to IFM Electronic GmbH directly. Their technical support team will be able to provide you with the necessary details, specifications, and documentation for this particular model.

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...100 bar

0...10 MPa

Process connection

threaded connection G 1/4 external thread internal thread:M5

Application

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...80

Min. bursting pressure

1000 bar

100 MPa

Pressure rating

200 bar

20 MPa

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	9.6...32 DC
Current consumption [mA]	< 25
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	complementary
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	500
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

0...100 bar

0...10 MPa

Set point SP

5...100 bar

0.5...10 MPa

Reset point rP

3...98 bar

0.3...9.8 MPa

Accuracy / deviations

Switch point accuracy [% of the final value]	< ± 2,5; (Setting accuracy)
Repeatability [% of the final value]	< ± 0,5; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the final value]	< ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Temperature drift per 10 K	< ± 0.5
