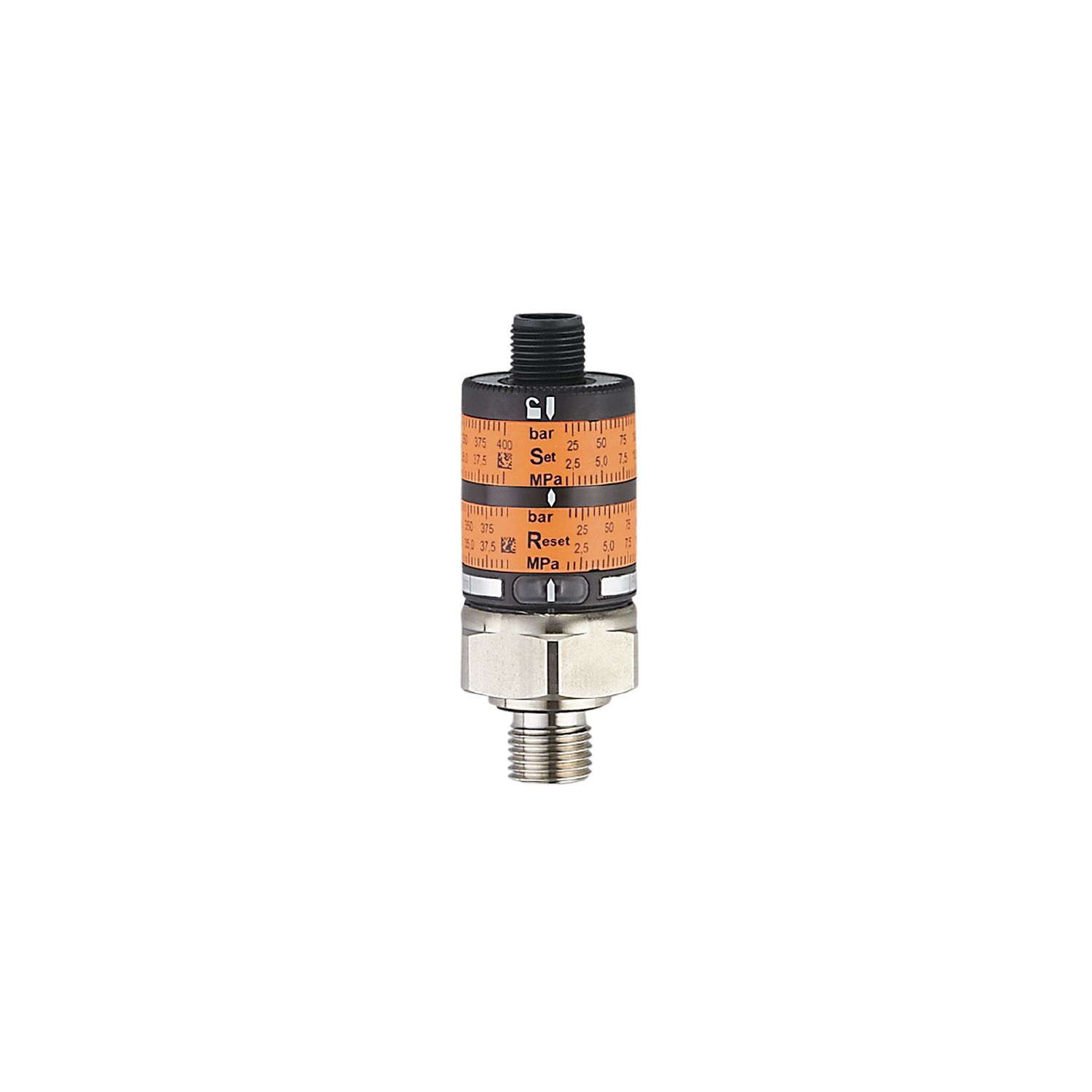

IFM Pressure switch with intuitive switch point setting PK5522 PK-100-SFG14-PSPKG/US/ /W

The IFM PK5522 PK-100-SFG14-PSPKG/US/W is a pressure switch with an intuitive switch point setting, manufactured by IFM Electronic GmbH. Here's some information about the pressure switch:

1. Model: PK5522 PK-100-SFG14-PSPKG/US/W
2. Manufacturer: IFM Electronic GmbH
3. Function: The pressure switch is designed to monitor and control pressure levels in industrial applications.
4. Switch Point Setting: The pressure switch features an intuitive switch point setting, allowing for easy adjustment of the pressure threshold at which the switch activates or deactivates.
5. Pressure Range: The pressure range supported by the switch depends on the specific model variant. In this case, the "PK-100" in the model name suggests a pressure range up to 100 bar. However, it's always recommended to refer to the product documentation or datasheet for the exact pressure range of this particular model.
6. Electrical Connection: The switch supports a specific electrical connection type, indicated by the "/US" in the model name. The exact type of electrical connection may vary, and you should consult the product documentation or datasheet for more details.
7. Process Connection: The switch has a process connection suitable for the application. The specific process connection type can be identified by the "/W" in the model name. Once again, referring to the product documentation will provide precise information about the process connection.

For detailed specifications, installation guidelines, and compatibility information for the IFM PK5522 PK-100-SFG14-PSPKG/US/W pressure switch, it is recommended to consult the official documentation provided by IFM Electronic GmbH or contact their technical support. They will be able to provide you with accurate and up-to-date information based on your specific requirements and the latest product information available.

Product characteristics

Number of inputs and outputs

Number of digital outputs: 1

Measuring range

0...100 bar

0...1450 psi

Process connection

threaded connection G 1/4 external thread internal thread:M5

Application

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...80

Min. bursting pressure

1000 bar

14500 psi

Pressure rating

200 bar

2900 psi

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	9.6...32 DC
Current consumption [mA]	< 25
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	1
Output function	normally open
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	500
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

0...100 bar

0...1450 psi

Set point SP

3...100 bar

44...1450 psi

Hysteresis

2 bar

29 psi

Accuracy / deviations

Switch point accuracy [% of the final value]	< ± 2,5; (Setting accuracy)
Repeatability [% of the final value]	< ± 0,5; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the final value]	< ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Temperature drift per 10 K	< ± 0.5
