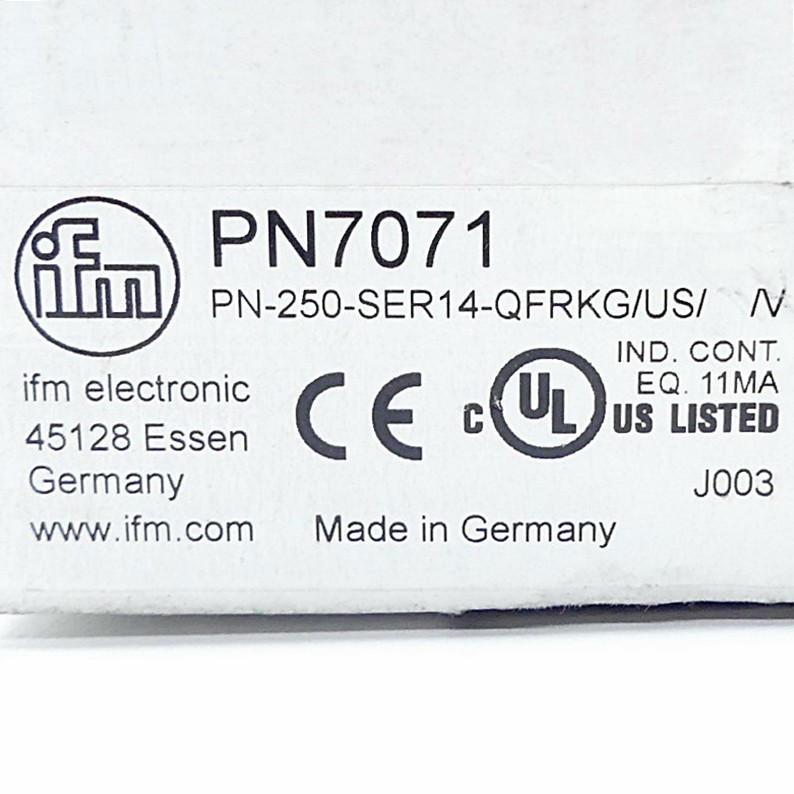

IFM PRESSURE SENSOR WITH DISPLAY PN7071 PN-250-SER14-QFRKG/US/ /V
Okay, let's take a look at the details of the IFM Pressure Sensor
with Display PN7071 PN-250-SER14-QFRKG/US//V:
1. Product Name:
- IFM Pressure Sensor with Display PN7071 PN-250-SER14-QFRKG/US//V
2. Description:
- The PN7071 PN-250-SER14-QFRKG/US//V is a pressure sensor from IFM
Electronics with a built-in display.
- Pressure sensors are used to measure the pressure of various
media, such as gases or liquids, in industrial applications.
3. Key Features:
- Measuring range of 0-250 bar (0-3626 psi)
- Stainless steel housing with a 4-digit display
- 4-wire DC PNP/NPN analog output
- Configurable via display or IO-Link
- Robust and compact design
- IP67 rated for use in harsh environments
4. Applications:
- The IFM PN7071 PN-250-SER14-QFRKG/US//V pressure sensor is
suitable for a variety of industrial applications, such as:
- Process monitoring and control
- Hydraulic and pneumatic systems
- Compressor and pump monitoring
- Leak detection and pressure regulation
5. Connectivity:
- The sensor has a 4-wire DC connection:
- 1 x Brown (L+)
- 1 x Blue (L-)
- 1 x Black (PNP/NPN analog output)
- 1 x White (IO-Link communication)
- The sensor can be easily integrated into industrial control
systems and automation networks, including those with IO-Link
connectivity.
6. Capabilities:
- Measuring range of 0-250 bar (0-3626 psi)
- 4-digit display for easy reading and configuration
- PNP/NPN analog output for process control
- IO-Link communication for advanced configuration and diagnostics
- Robust stainless steel housing with IP67 rating
- Configurable via display or IO-Link interface
7. Compatibility:
- The IFM PN7071 PN-250-SER14-QFRKG/US//V pressure sensor is
designed to be compatible with a wide range of industrial
automation and control systems.
- It can be integrated with programmable logic controllers (PLCs),
SCADA systems, and other industrial control equipment, including
those with IO-Link support.
The PN7071 PN-250-SER14-QFRKG/US//V is a versatile and robust
pressure sensor from IFM Electronics, featuring a built-in display
and a wide measuring range of 0-250 bar. Its stainless steel
housing, IP67 rating, and configurable analog output and IO-Link
communication make it suitable for a variety of industrial pressure
monitoring and control applications, such as process control,
hydraulic and pneumatic systems, and compressor/pump monitoring.
If you have any further questions about the IFM PN7071
PN-250-SER14-QFRKG/US//V pressure sensor or need additional
information, please don't hesitate to ask.
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range | | 0...250 bar | 0...3620 psi | 0...25 MPa |
|
| Process connection | threaded connection G 1/4 internal thread |
Application
| Special feature | Gold-plated contacts |
| Measuring element | metallic thin film cell |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25...80 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Vacuum resistance [mbar] | -1000 |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC [Hz] | < 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | | 0...250 bar | 0...3620 psi | 0...25 MPa |
|
Factory setting / CMPT = 2
| Set point SP | | 2...250 bar | 40...3620 psi | 0.2...25 MPa |
|
| Reset point rP | | 1...249 bar | 20...3600 psi | 0.1...24.9 MPa |
|
| Min. difference between SP and rP |
|
| In steps of |
|
Status_B High Resolution / CMPT = 3
| Set point SP | | 2...250 bar | 30...3626 psi | 0.2...25 MPa |
|
| Reset point rP | | 1...249 bar | 12...3608 psi | 0.1...24.9 MPa |
|
| Min. difference between SP and rP |
|
| In steps of |
|
