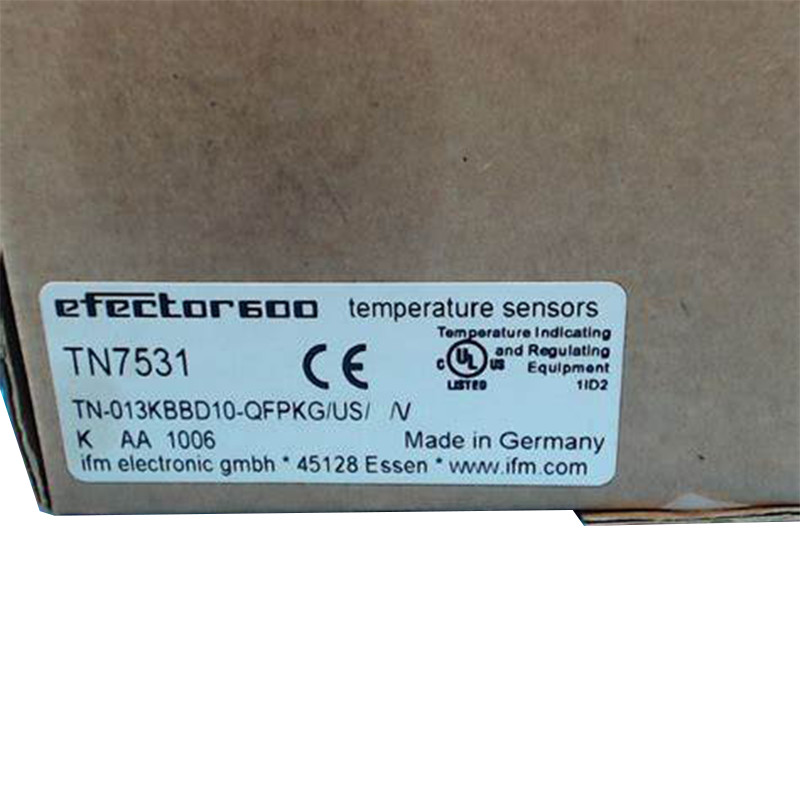

IFM TN7531 TN-013KBBD10-QFPKG/US/ /V
Okay, let's take a closer look at the IFM TN7531
TN-013KBBD10-QFPKG/US/ /V temperature sensor:
1. Product Name:
- IFM TN7531 TN-013KBBD10-QFPKG/US/ /V
2. Product Description:
- This is an IFM TN7531 temperature sensor with the following key
specifications:
- Model: TN-013KBBD10-QFPKG/US/ /V
- Sensor type: Temperature
3. Key Features:
- Temperature measurement
- M10 connection
- Quad (4-wire) output
- Brass housing
- Compact design
4. Technical Specifications:
- Measuring range: -40 to 130°C (-40 to 266°F)
- Output signal: Quad (4-wire) output
- Ambient temperature: -40 to 85°C (-40 to 185°F)
- Ingress protection: IP67
- Process connection: M10 x 1
- Material: Brass
5. Applications:
- The IFM TN7531 temperature sensor is suitable for a variety of
industrial applications, such as:
- Process control
- HVAC systems
- Machinery monitoring
- General temperature measurement and monitoring
6. Installation and Configuration:
- The sensor can be installed using the M10 process connection.
- Electrical connection is made through the quad (4-wire) output.
- Configuration and setup may be required depending on the specific
application and control system integration.
7. Certifications and Approvals:
- The IFM TN7531 sensor is generally designed to meet relevant
industrial standards and regulations, but the exact certifications
may vary based on the specific model and region of use.
Please note that the full model number, TN-013KBBD10-QFPKG/US/ /V,
indicates that there may be additional options or variations
available for this sensor series. The specific details would depend
on the complete model number selected.
If you have any other questions or need more information, please
let me know.
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range |
|
| Communication interface | IO-Link |
| Process connection | threaded connection M18 x 1,5 internal thread |
| Installation length EL [mm] | 45 |
Application
| Special feature | Gold-plated contacts |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class B) |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
| Minimum installation depth [mm] | 12 |
Electrical data
| Operating voltage [V] | 18...32 DC; ("supply class 2" to cULus) |
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Probe length L [mm] | 45 |
| Measuring range |
|
| Set point SP | | -39.5...150 °C | -39...302 °F |
|
| Reset point rP | | -40...149.5 °C | -40...301 °F |
|
| In steps of |
|
Resolution
| Resolution of switching output [K] | 0.1 |
| Resolution of display [K] | 0.1 |
