IFM TR7430 TR-...KDBR12-QFPKG/US/....../V

Ask Lasest Price
Brand Name :	IFM
Model Number :	TR7430
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	100
Delivery Time :	10-12Days

Add to Cart

Product Details
Company Profile

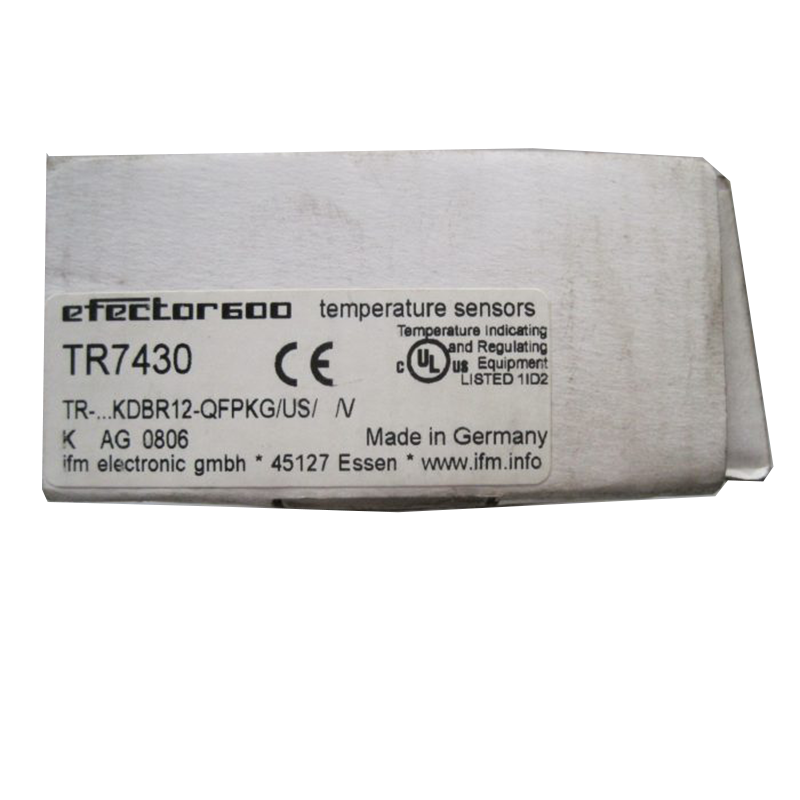

IFM TR7430 TR-...KDBR12-QFPKG/US/....../V

IFM TR7430 TR-...KDBR12-QFPKG/US/....../V
Okay, let's take a closer look at the details for the IFM TR7430 TR-...KDBR12-QFPKG/US/....../V temperature sensor:
1. Product Name:
- IFM TR7430 TR-...KDBR12-QFPKG/US/....../V
2. Product Description:
- This is an IFM TR7430 temperature sensor with the following key specifications:
- Model: TR-...KDBR12-QFPKG/US/....../V
- Sensor type: Temperature
3. Key Features:
- Temperature measurement
- M12 quick disconnect connector
- Quad (4-wire) output
- Stainless steel housing
- Compact design
4. Technical Specifications:
- Measuring range: Dependent on the specific model selected
- Output signal: Quad (4-wire) output
- Ambient temperature: -40 to 85°C (-40 to 185°F)
- Ingress protection: IP67
- Process connection: M12 x 1
- Material: Stainless steel
5. Applications:
- The IFM TR7430 temperature sensor is suitable for a wide range of industrial applications, such as:
- Process control
- HVAC systems
- Machinery monitoring
- General temperature measurement and monitoring
6. Installation and Configuration:
- The sensor can be installed using the M12 process connection.
- Electrical connection is made through the M12 quick disconnect connector.
- Configuration and setup may be required depending on the specific application and control system integration.
7. Certifications and Approvals:
- The IFM TR7430 sensor is generally designed to meet relevant industrial standards and regulations, but the exact certifications may vary based on the specific model and region of use.
Please note that the full model number, TR-...KDBR12-QFPKG/US/....../V, indicates that there may be additional options or variations available for this sensor series. The specific details would depend on the complete model number selected.
If you have any other questions or need more information, please let me know.
Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

-40...150 °C

-40...302 °F

Process connection

threaded connection G 1/2 external thread

Application

Special feature	Gold-plated contacts
Application	for temperature sensors TS/TT

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 50
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1.5
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

-40...150 °C

-40...302 °F

Set point SP

-39.5...150 °C

-39...302 °F

Reset point rP

-40...149.5 °C

-40...301 °F

In steps of

0.5 °C

1 °F

Resolution

Resolution of switching output [K]	0.5
Resolution of display [K]	0.5

Accuracy / deviations

Switch point accuracy [K]	± 0,2
Display accuracy [K]	± (0,2 + ½ Digit)
Temperature drift per 10 K [K]	0.1

Response times

Max. measuring/display cycle [ms]

200

Software / programming

Adjustment of the switch point	programming button
Parameter setting options	hysteresis / window; normally open / normally closed; min/max memory reset; Display unit; zero-point calibration

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6
