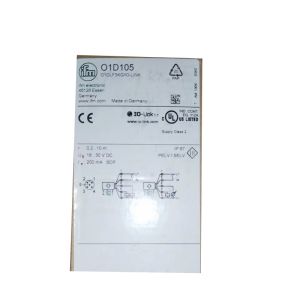

IFM Photoelectric distance sensor O1D105 O1DLF3KG/IO-LINK
Okay, let's take a look at the IFM Photoelectric Distance Sensor
O1D105 O1DLF3KG/IO-LINK:
1. Product Name:
- IFM Photoelectric Distance Sensor
2. Model Number:
- O1D105 O1DLF3KG/IO-LINK
3. Description:
- This is a photoelectric distance sensor from IFM Electronics that
is designed for measuring distance in a variety of industrial
applications.
- It utilizes laser technology to accurately detect the distance to
an object.
4. Key Features:
- Measurement range of 20 to 1500 mm (0.8 to 59.1 inches)
- Accuracy of ±2 mm (±0.08 inches)
- IO-Link communication interface
- Adjustable switching points and hysteresis
- Compact, IP67-rated housing for industrial environments
5. Applications:
- The IFM Photoelectric Distance Sensor is suitable for a wide
range of industrial applications, including:
- Position detection
- Level monitoring
- Object detection
- Collision avoidance
- Robotics and automation
6. Connectivity:
- The sensor features an M12 connector for electrical connection.
- It supports IO-Link communication, allowing for easy integration
into industrial control systems.
7. Capabilities:
- Measurement range of 20 to 1500 mm (0.8 to 59.1 inches)
- Accuracy of ±2 mm (±0.08 inches)
- Two programmable switching outputs
- Analog output signal (4-20 mA or 0-10 V)
- IO-Link communication interface
8. Compatibility:
- The O1D105 O1DLF3KG/IO-LINK photoelectric distance sensor is
designed to be compatible with a wide range of industrial
automation systems and control equipment.
- It can be easily integrated into various industrial control
networks and architectures that support IO-Link communication.
The key features of this photoelectric distance sensor are the wide
measurement range of up to 1500 mm (59.1 inches), the high accuracy
of ±2 mm (±0.08 inches), and the support for IO-Link communication.
The IO-Link interface allows for easy integration into industrial
control systems, providing access to advanced configuration and
diagnostics capabilities.
The two programmable switching outputs and the analog output signal
provide flexibility in integrating the sensor into control systems
and automating distance-related tasks.
The compact, IP67-rated housing ensures the sensor can withstand
the demanding environments often found in industrial settings.
Overall, the IFM Photoelectric Distance Sensor O1D105
O1DLF3KG/IO-LINK is a versatile and high-performance solution for
accurate distance measurement and detection in a variety of
industrial applications.
Please let me know if you have any other questions!
Product characteristics
| Laser protection class | 2 |
| Housing | rectangular |
Electrical data
| Operating voltage [V] | 18...30 DC |
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (programmable) |
| Max. current load per output [mA] | 200 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20; (scalable IEC 61131-2) |
| Max. load [Ω] | 250 |
| Analogue voltage output [V] | 0...10; (scalable IEC 61131-2) |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot width [mm] | 15 |
| Max. light spot height [mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression [m] | 10...100 |
Measuring/setting range
| Measuring range [m] | 0.2...10; (white paper 200 x 200 mm 90% remission) |
| Sampling rate [Hz] | 1...33 |
Interfaces
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Device Teach
Channel; Binary Data Channel; Process Data Variable |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 2 |
| Process data binary | 2 |
| Min. process cycle time [ms] | 6 |
| Supported DeviceIDs | |
