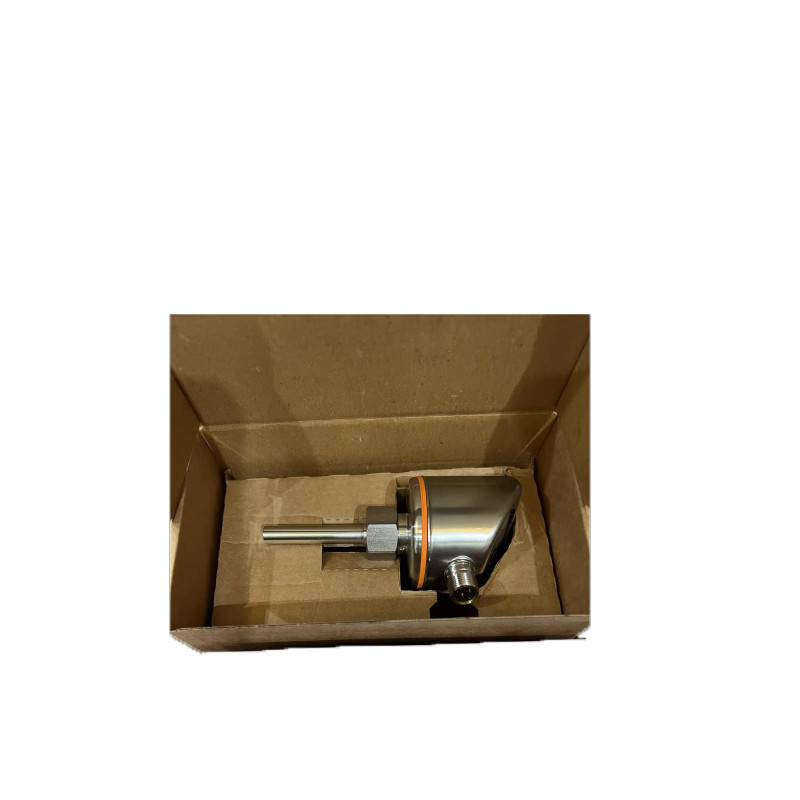

IFM FLOW MONITOR SI5010 SID10ADBFPKG/US-100
Okay, let's take a look at the IFM Flow Monitor SI5010
SID10ADBFPKG/US-100:
1. Product Name:
- IFM Flow Monitor
2. Model Number:
- SI5010 SID10ADBFPKG/US-100
3. Description:
- This is a flow monitoring device from IFM Electronics that is
designed to measure and monitor the flow rate of liquids and gases
in industrial applications.
4. Key Features:
- Measurement range of 0.1 to 10 l/min (for liquids)
- Measurement range of 2 to 100 Nm³/h (for gases)
- Accuracy of ±3% of full scale
- Integrated 4-digit display for flow rate readout
- Two programmable switching outputs
- Compact, IP67-rated housing for industrial environments
5. Applications:
- The IFM Flow Monitor SI5010 is suitable for a variety of
industrial applications, including:
- Process monitoring and control
- Cooling and lubricating systems
- Compressed air systems
- Fuel and oil supply systems
- Water treatment and distribution
6. Connectivity:
- The flow monitor features a 4-wire, M12 connector for electrical
connection.
- It can be easily integrated into industrial control systems and
PLC (Programmable Logic Controller) environments.
7. Capabilities:
- Measurement of liquid flow rates from 0.1 to 10 l/min
- Measurement of gas flow rates from 2 to 100 Nm³/h
- Analog output signal (4-20 mA or 0-10 V)
- Two programmable switching outputs for flow rate monitoring and
control
- Ability to set switching points and hysteresis
8. Compatibility:
- The SI5010 SID10ADBFPKG/US-100 flow monitor is designed to be
compatible with a wide range of industrial automation and control
systems.
- It can be easily integrated into various industrial control
networks and architectures.
The key features of this flow monitor are the wide measurement
range, the integrated digital display, and the IP67-rated housing.
These make it suitable for use in demanding industrial environments
where reliable flow monitoring and control are required.
The two programmable switching outputs and the analog output signal
provide flexibility in integrating the flow monitor into control
systems and automating flow-related tasks.
Overall, the IFM Flow Monitor SI5010 SID10ADBFPKG/US-100 is a
versatile and robust solution for flow measurement and monitoring
in a variety of industrial applications.
Please let me know if you have any other questions!
| Number of inputs and outputs | Number of digital outputs: 1 |
| Process connection | M18 x 1,5 internal thread |
Application
| Media | Liquids; Gases |
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 300 |
| MAWP (for applications according to CRN) [bar] | 208 |
Liquids
| Medium temperature [°C] | -25...80 |
Gases
| Medium temperature [°C] | -25...80 |
Electrical data
| Operating voltage [V] | 18...36 DC |
| Current consumption [mA] | < 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 10 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
Outputs
| Total number of outputs | 1 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
