SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread

Ask Lasest Price
Brand Name :	IFM
Model Number :	SI5004
Certification :	CE
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	1000PS
Delivery Time :	3-5DAYS

Add to Cart

Product Details
Company Profile

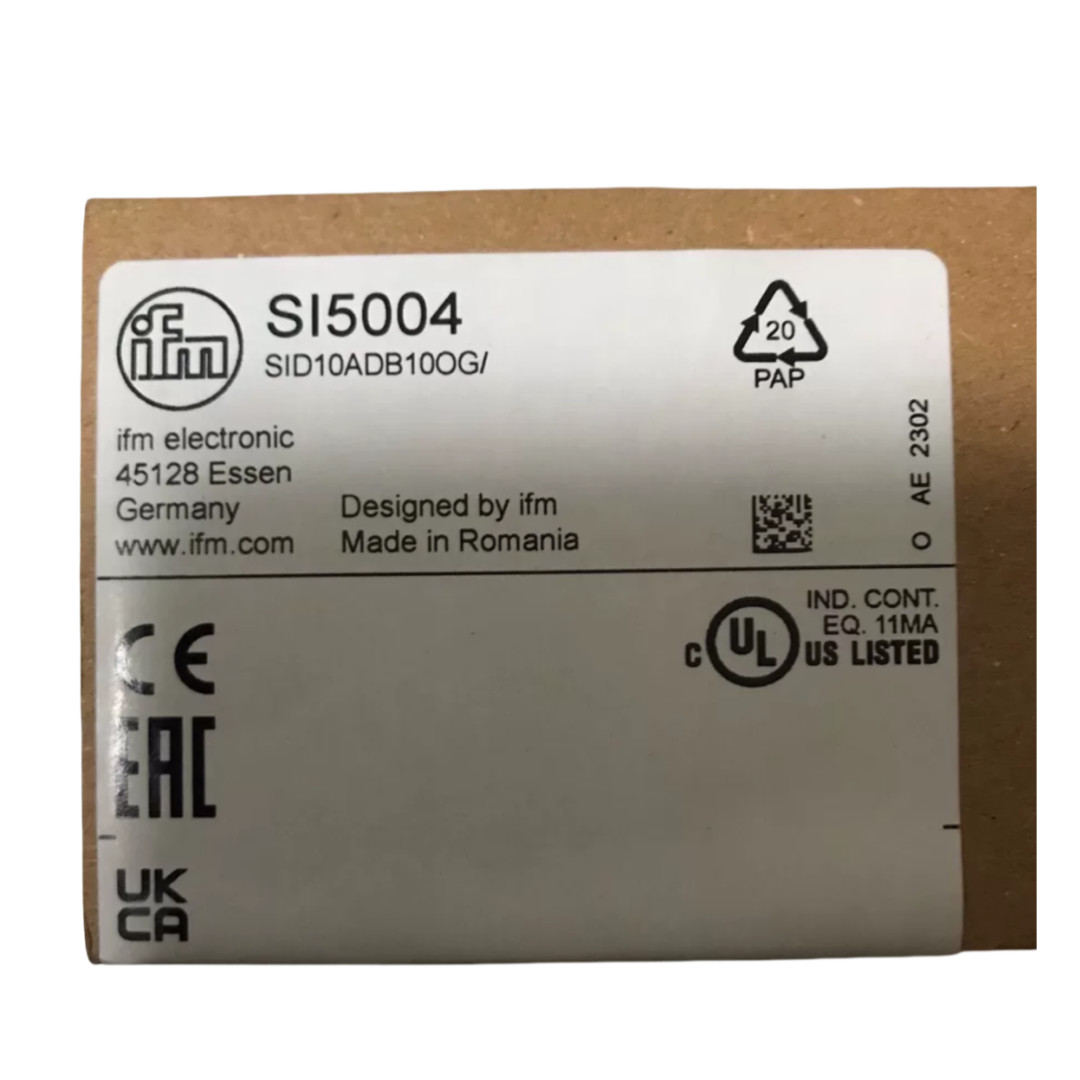

SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread

IFM Flow transmitter SI5004 SID10ADB10OG M18 x 1,5 internal thread

Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Quick set-up of the sensor
Robust stainless steel housing for use in harsh industrial environments
LED bar graph display for indicating the flow state

Product characteristics

Number of inputs and outputs	Number of analogue outputs: 1
Process connection	M18 x 1,5 internal thread

Application

Media	Liquids
Medium temperature [°C]	-25...80
Pressure rating [bar]	300
MAWP (for applications according to CRN) [bar]	208

Liquids

Medium temperature [°C]

-25...80

Electrical data

Operating voltage [V]	19...36 DC
Current consumption [mA]	< 60
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs

Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Overload protection	yes

Measuring/setting range

Probe length L [mm]

Liquids

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...100

Accuracy / deviations

Repeatability [cm/s]

1...5

Note on repeatability

for water 5...100 cm/s; 25 °C

Factory setting

Temperature drift [cm/s x 1/K]

0.1; (for water 5...100 cm/s; 10...70 °C)

Measuring error [% of the final value]

± 2...± 10

Response times

Response time [s]

1...10

Liquids

Response time [s]

1...10

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...100
Protection	IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (55...2000 Hz)

MTTF [years]

259

Mechanical data

Weight [g]	230
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (316L/1.4404); stainless steel (304/1.4301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	stainless steel (316L/1.4404); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Displays / operating elements

Display

function

10 x LED, three-colour

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12; coding: A
